The HUAHUA HH506 edge banding machine is an automatic linear edge bander with pre-milling, gluing, end cutting, top and bottom trimming, scraping and buffing functions.
Designed for furniture, cabinet, kitchen, bedroom and panel-processing manufacturers, it supports panel thicknesses from 10–60 mm, edge-tape thicknesses from 0.4–3.0 mm and selectable feed speeds of 15, 18 or 20 m/min.
PPM supplies the HH506 with UK delivery, installation, operator training and technical support.
The HH506 Edge Banding Machine from HUAHUA is an automatic linear edge bander designed for repeated panel-finishing work. It combines pre-milling, EVA adhesive application, edge-tape feeding, end cutting, rough and fine trimming, scraping and buffing within one processing line.
Selectable feed speeds of 15, 18 or 20 m/min allow the machine to be configured around different production requirements. The HH506 supports panel thicknesses from 10–60 mm and edge-tape thicknesses from 0.4–3.0 mm.
| Specification | Detail |
|---|---|
| Manufacturer | HUAHUA |
| Model | HH506 |
| Machine type | Automatic linear edge banding machine |
| Minimum panel length | 100 mm or greater |
| Minimum panel width | 95 mm or greater |
| Panel thickness | 10–60 mm |
| Edge-tape width | 13–63 mm |
| Edge-tape thickness | 0.4–3.0 mm |
| Selectable feed speeds | 15, 18 or 20 m/min |
| Total power | 19.4 kW |
| Working air pressure | 0.65 MPa |
| Approximate machine dimensions | 5500 × 1000 × 1700 mm |
| Approximate machine weight | 2200 kg |
The HH506 is designed for manufacturers carrying out repeated straight-edge finishing on compatible panel materials. Typical applications include:
The HH506 brings several processing stages together within one automatic edge-banding line:
The final finish will depend on panel condition, edge-tape specification, adhesive choice, tooling condition and machine setup.
Panel Production Machinery can support the HH506 project from initial machine selection through to delivery, installation and operator handover.
Machine specification: Guidance on panel sizes, edge-tape requirements, feed speeds and suitable machine configuration.
Factory planning: Review of machine footprint, access, electrical supply, compressed air and extraction requirements.
Delivery and installation: Coordination of unloading, positioning and machine installation.
Operator training: Practical guidance on controls, setup, routine operation and daily checks.
Technical support: Ongoing assistance with operation, maintenance and replacement-parts requirements.
Speak to the PPM team about your panel materials, edge-tape sizes, production volumes, required finish and workshop layout.
We can help assess whether the HH506 is suitable for your production requirements and provide further technical information or a tailored quotation.
The HUAHUA HH506 is an automatic linear edge banding machine for repeated straight-edge finishing in furniture, cabinet, kitchen, bedroom, joinery and panel-processing production.
It combines pre-milling, adhesive application, edge-tape feeding, end cutting, top and bottom trimming, scraping and buffing within one processing line. This allows compatible panels to move through the principal edge-banding stages without being transferred between separate machines.
The HH506 accommodates panel thicknesses from 10–60 mm, edge-tape thicknesses from 0.4–3.0 mm and selectable feed speeds of 15, 18 or 20 m/min. Its approximate dimensions are 5500 × 1000 × 1700 mm, so the installation should be planned around the full machine length, operator access and material flow.
The HH506 is designed for manufacturers and joinery businesses carrying out repeated straight-edge finishing on compatible panel materials.
Its pre-milling, gluing, trimming, scraping and buffing stages make it suitable for workshops that want to combine the principal edge-banding operations within one automatic production line.
Suitable applications:
Suitability will depend on panel dimensions, edge-tape specification, adhesive requirements, required finish and production volumes.
Planning a new edge-banding installation or replacing an existing machine? Speak to PPM about your panel sizes, edge-tape requirements, adhesive needs, production volumes and available factory space.
We can help assess the HH506 against your workflow, confirm the relevant specification and options, and provide guidance on installation, operator training and technical support.

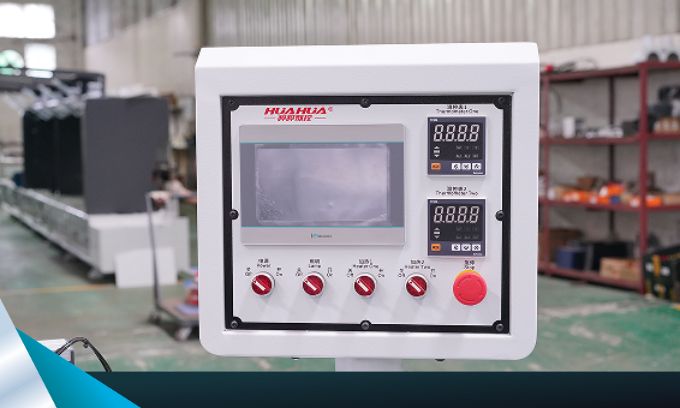

The HH506 uses a 7-inch colour touchscreen control panel designed to provide a clear, central interface for day-to-day machine operation.
The display presents operating prompts and machine information in a concise format, while the compact control station keeps the main controls accessible without taking up unnecessary working space.
Operational benefits:

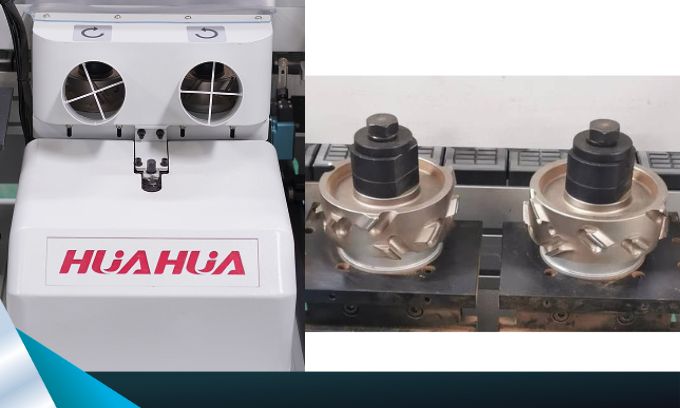

The HH506 is fitted with a pre-milling unit powered by a 2.2 kW motor and equipped with two milling tools positioned at the front and rear of the station.
The cutters machine the panel edge after sizing, helping remove minor saw marks, unevenness and surface irregularities before adhesive and edge tape are applied. This provides a more consistent edge profile for the subsequent gluing and pressing stages.
The standard maximum pre-milling height is 40 mm, with an optional configuration available for pre-milling heights up to 65 mm.
Operational benefits:

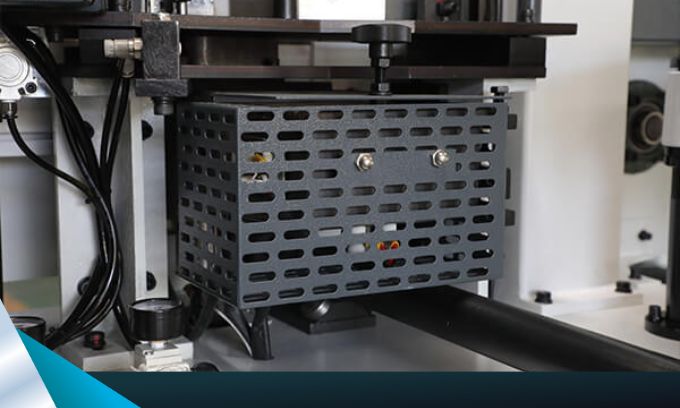

The HH506 is supplied with a heated glue-pot system for use with EVA hot-melt adhesive.
The system is designed to reach operating temperature within a relatively short period. A tool-free quick-change arrangement allows the glue pot to be removed for cleaning or when changing adhesive colour.
The synchronised glue roller can be finely adjusted to control the amount of EVA adhesive applied to the panel edge during processing. Operating temperature, glue type and cleaning procedures should follow the adhesive manufacturer’s recommendations and the machine setup supplied by PPM.
Operational benefits:
After the edge tape has been applied, the HH506 uses an automatic end-cutting unit to trim the projecting tape at the leading and trailing ends of the panel.
The cutting assembly travels on a linear guide system and uses a high-frequency motor to follow the panel profile during the trimming cycle. This helps leave the edge tape flush with the front and rear ends of suitable panels before they move to the next finishing stage.
Operational benefits:
The HH506 uses separate rough and fine trimming units to remove excess edge tape from the upper and lower sides of the panel after bonding.
Large and small tracing discs follow the panel profile while high-frequency motors drive the trimming cutters. The rough-trimming stage removes the main tape overhang, before the fine-trimming stage refines the upper and lower edges into the required rounded profile.
The machine can process edge-tape thicknesses from 0.4–3.0 mm, subject to suitable tooling, machine setup and the edge material being used.
Operational benefits:
After the rough and fine trimming stages, the HH506 uses upper and lower scraping knives to refine the processed edge tape.
The scraping unit removes fine cutter marks and minor ripples left by the rotating trimming tools. Its profiled knives follow the rounded edge created during trimming, helping maintain the required R-shaped profile along the upper and lower panel edges.
Operational benefits:

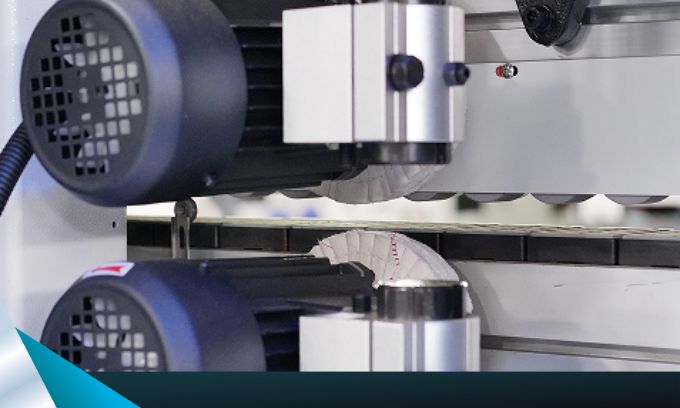

The HH506 uses two rotating cloth buffing wheels as the final stage of the edge-banding process.
The wheels clean the processed edge and polish the finished edge-tape surface after trimming and scraping. The twin-wheel arrangement also helps distribute wear more evenly across the polishing system during operation.
Operational benefits:

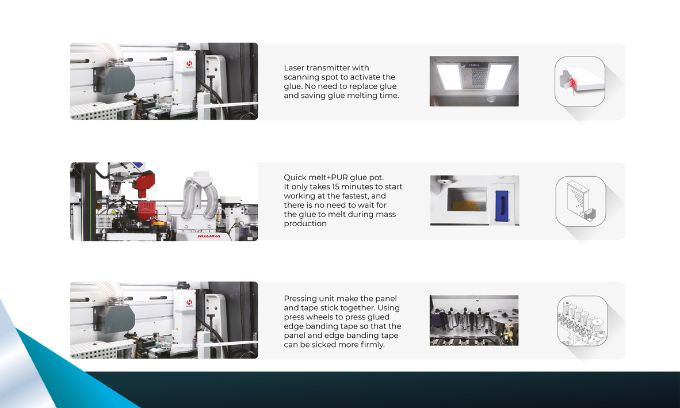

The HH506 can be specified with selected optional equipment to suit different adhesives, production volumes and panel-processing requirements.
Availability depends on the machine configuration ordered. PPM should confirm each option, its compatibility with the HH506 and any resulting changes to the machine specification before manufacture.
Supported options:
The standard pre-milling unit supports a maximum pre-milling height of 40 mm. An optional configuration is available for pre-milling heights up to 65 mm, allowing the pre-milling tools to work across taller panel edges.
An optional laser sensor can detect the approaching panel and activate the glue system only when required. The supplier material states that this avoids keeping the glue operating continuously between panels and can reduce unnecessary heating time.
A quick-melt PUR glue-pot option is available for suitable HH506 configurations. The supplied brochure states that the system can reach operating condition in approximately 15 minutes, reducing the wait for adhesive to melt before production begins.
PUR glue handling, cleaning and storage requirements differ from EVA adhesive, so the final system and operating procedure should be agreed with PPM.
An optional multi-wheel pressing unit can apply further pressure to the edge tape after gluing, helping hold the tape against the panel edge as it moves through the bonding stage.
The appropriate configuration depends on the adhesive being used, panel dimensions, production volumes, required changeover times and the finish expected. PPM can confirm which options are compatible with the HH506 and whether a different HUAHUA edge-bander model would better suit the application.

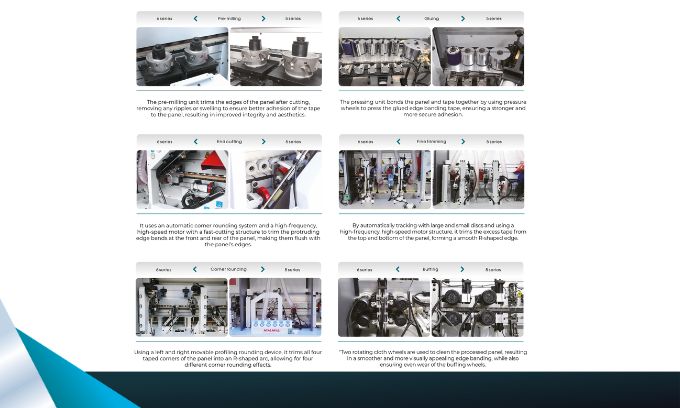

The HH506 brings the main straight-edge banding stages together within one automatic production line, including pre-milling, EVA adhesive application, end cutting, rough and fine trimming, edge scraping and buffing.
With selectable feed speeds of 15, 18 or 20 m/min, support for panel thicknesses from 10–60 mm and edge-tape thicknesses from 0.4–3.0 mm, it provides a practical configuration for manufacturers carrying out repeated panel-finishing work.
Key reasons to consider the HH506:
The right edge-bander depends on panel dimensions, edge-tape requirements, adhesive choice, production volumes and the finish required. PPM can compare the HH506 with other HUAHUA edge banding machines and recommend the most appropriate configuration for the proposed workflow.
The HH506 can operate as a stand-alone edge banding machine or as one stage within a wider woodworking machinery and panel-production workflow.
Panels are typically sized first using a beam saw or CNC router before being transferred to the HH506 for pre-milling, adhesive application, edge-tape application, trimming, scraping and buffing. Depending on the manufacturing process, the finished panels can then move to CNC drilling, hardware preparation or assembly.
Typical workflow position:
Installing the HH506 requires more than allowing for the machine body alone. The proposed layout should provide sufficient space for panel infeed and outfeed, operator access, routine maintenance and the movement of boards between adjacent production stages.
The HH506 has approximate dimensions of 5500 × 1000 × 1700 mm and an approximate weight of 2200 kg. The installation also requires suitable electrical power, compressed air at 0.65 MPa and appropriately planned extraction connections.
Factory planning considerations:
PPM can review the proposed factory location, access route, panel flow and service requirements before delivery, helping identify possible installation or layout issues at an early stage.
The HH506 has approximate dimensions of 5500 × 1000 × 1700 mm. The proposed layout should provide suitable infeed and outfeed space, operator access, extraction connections, electrical power, compressed air and room for moving panels between adjacent machines.
The HUAHUA HH506 combines pre-milling, EVA adhesive application, end cutting, rough and fine trimming, edge scraping and buffing within one automatic edge-banding line.
Speak to PPM about your panel dimensions, edge-tape specification, adhesive requirements, production volumes and available factory space. The team can help confirm whether the HH506 is suitable for the proposed application and provide guidance on configuration, installation and operator training.
Contact PPM for technical information, a tailored quotation or to discuss a demonstration.
The confirmed HH506 specification supports edge-tape widths from 13–63 mm and edge-tape thicknesses from 0.4–3.0 mm.
The suitability of PVC, ABS, melamine, veneer or other edge materials should be confirmed against the selected glue system, tooling and intended panel application.
The standard HH506 configuration uses an EVA hot-melt glue-pot system.
A quick-melt PUR glue-pot can be specified as an optional configuration, subject to confirmation by PPM. PUR systems require different handling, storage and cleaning procedures from EVA adhesive.
The standard EVA glue-pot system is designed to reach operating temperature within a relatively short period, but the supplied information does not state a fixed warm-up time.
Actual heating time will depend on the adhesive, starting temperature, operating-temperature setting and machine configuration. The optional quick-melt PUR glue-pot system is stated by HUAHUA to reach operating condition in approximately 15 minutes.
The standard model handles panel thicknesses from 10 mm to 60 mm. An optional pre-milling upgrade is available for edge preparation on panels up to 65 mm thick.
The HH506 includes rough and fine trimming, edge scraping and twin-wheel buffing stages that can support the finishing of decorative and visible panel edges.
Suitability will depend on the panel surface, edge-tape material, adhesive choice, tooling condition and machine setup. PPM should confirm the intended materials and finish requirements before the machine is specified.
Yes. The HH506 can operate as a stand-alone edge bander or as one stage within a wider production workflow.
Panels may be sized using a beam saw or CNC router before edge banding, and can then move to CNC drilling, hardware preparation or assembly. This does not necessarily mean the machines are physically or digitally connected.
The standard HH506 specification supports panel thicknesses from 10–60 mm. Its standard pre-milling unit has a maximum pre-milling height of 40 mm, with an optional configuration available for pre-milling heights up to 65 mm.
The HH506 has selectable feed speeds of 15, 18 or 20 m/min. The appropriate setting will depend on the panel material, edge-tape specification, adhesive and required finish.
The HH506 combines pre-milling, EVA adhesive application, edge-tape feeding, automatic end cutting, rough and fine top-and-bottom trimming, edge scraping and twin-wheel buffing within one linear machine.
Yes. PPM can provide support with machine selection, factory-layout planning, delivery, installation, operator handover and ongoing technical assistance.
The HH506 requires an appropriate electrical supply, compressed air at 0.65 MPa, dust extraction and sufficient infeed, outfeed and maintenance space. The exact electrical and extraction requirements should be confirmed for the final machine configuration.
Speak to PPM about your panel sizes, edge-tape requirements, adhesive choice, production volumes and available factory space.
We can provide technical information, confirm the available HH506 configuration and options, and prepare a tailored quotation including delivery, installation and operator training.
Compare the HH506 with other HUAHUA edge banding machines offering different processing functions, production capacities and optional configurations.
Review the available models below or speak to PPM for help selecting the most appropriate edge bander for your panel sizes, edge-tape requirements, adhesive system and expected production volumes.
Receive occasional updates on new HUAHUA machinery, product launches, technical information, installation projects and other woodworking equipment supplied by PPM.
