The HUAHUA HH506R is an automatic linear edge banding machine with pre-milling, EVA gluing, end cutting, rough and fine trimming, automatic corner rounding, scraping, buffing and air-blow cleaning.
It supports panel thicknesses from 10–60 mm, edge-tape thicknesses from 0.4–3.0 mm and selectable feed speeds of 15, 18 or 20 m/min. PPM supplies the HH506R with UK installation, operator training and technical support.
The HH506R Edge Banding Machine from HUAHUA is an automatic linear edge bander designed for repeated straight-edge processing where integrated corner rounding is required.
Its processing sequence combines pre-milling, EVA adhesive application, edge-tape pressing, automatic end cutting, rough and fine top-and-bottom trimming, corner rounding, edge scraping, buffing and air-blow cleaning within one machine.
The HH506R is suited to furniture, cabinet, kitchen, bedroom, joinery and panel-processing manufacturers working with compatible straight-edged panels and edge tapes.
| Specification | Value |
|---|---|
| Minimum panel length | ≥120 mm |
| Minimum panel width | ≥95 mm |
| Panel thickness | 10–60 mm |
| Edge-tape width | 13–63 mm |
| Edge-tape thickness | 0.4–3.0 mm |
| Feed speeds | 15 / 18 / 20 m/min |
| Total power | 17.2 kW |
| Working pressure | 0.65 MPa |
| Machine dimensions | 6660 × 1000 × 1700 mm |
| Approximate weight | 2500 kg |
The HH506R is intended for manufacturers that require automatic edge banding together with integrated corner rounding on compatible panel components.
Suitable applications include:
The HH506R combines the principal edge-banding and finishing stages within one linear processing sequence:
PPM can support machine selection, factory-layout planning, delivery, installation and operator training for the HH506R.
Final installation requirements should be confirmed against the ordered configuration, including electrical supply, compressed air, extraction, infeed and outfeed space, delivery access and maintenance clearance.
Speak to PPM about your panel dimensions, edge-tape specification, adhesive requirements, required corner profile, production volumes and available factory space.
PPM can confirm the suitable HH506R configuration and provide technical information and a tailored quotation.
The HH506R Edge Banding Machine from HUAHUA is an automatic linear edge bander designed for panel manufacturers that require integrated corner rounding as part of the edge-finishing sequence.
The machine combines pre-milling, EVA adhesive application, edge-tape pressing, automatic end cutting, rough and fine top-and-bottom trimming, corner rounding, edge scraping, buffing and air-blow cleaning within one production line.
With selectable feed speeds of 15, 18 or 20 m/min, the HH506R is intended for repeated processing of compatible furniture, cabinet, kitchen, bedroom and joinery panels where finished corners form part of the required edge profile
The HH506R is intended for panel manufacturers that require automatic straight-edge banding together with an integrated corner-rounding stage.
It is suited to repeated production where panels move through pre-milling, EVA gluing, pressing, end cutting, rough and fine trimming, corner rounding, scraping, buffing and air-blow cleaning within one machine.
Suitable for:
PPM can help assess whether the HH506R is suitable for your panel sizes, edge-tape specification, adhesive requirements, corner-rounding needs, production volumes and available factory space.
Support can include machine selection, configuration advice, delivery planning, installation, operator training and ongoing technical assistance.
The HH506R combines a colour touchscreen human–machine interface with PLC control.
The display provides operating prompts and centralises the main machine controls. The PLC system monitors equipment signal status and supports condition monitoring across the machine.
HUAHUA also describes a self-checking function that displays corresponding faults and can stop the machine when an abnormal condition is detected.
Operational benefits:
The HH506R automatically adjusts the height of the upper pressure beam according to the selected panel thickness.
The processing units are positioned to suit the chosen setting, while a mechanical digital display shows the selected sheet thickness.
This supports machine setup across the HH506R’s confirmed 10–60 mm panel-thickness range.
Operational benefits:
Before adhesive and edge tape are applied, the HH506R uses a pre-milling unit to prepare the cut panel edge.
The unit is powered by a 3.7 kW motor and uses two milling tools positioned at the front and rear. These tools remove minor corrugations, expanded edges and cutting marks, creating a more suitable surface for the following gluing and edge-banding stages.
The standard maximum pre-milling height is 40 mm, with an optional configuration available for pre-milling heights up to 65 mm.
Operational benefits:
The HH506R uses a heated glue-pot system to apply EVA hot-melt adhesive before the edge tape is pressed against the panel.
HUAHUA describes the unit as having a relatively short warm-up period, a tool-free quick-change arrangement for cleaning or changing adhesive colour, and a synchronised, finely adjustable glue roller to control the amount of adhesive applied.
Operational benefits:

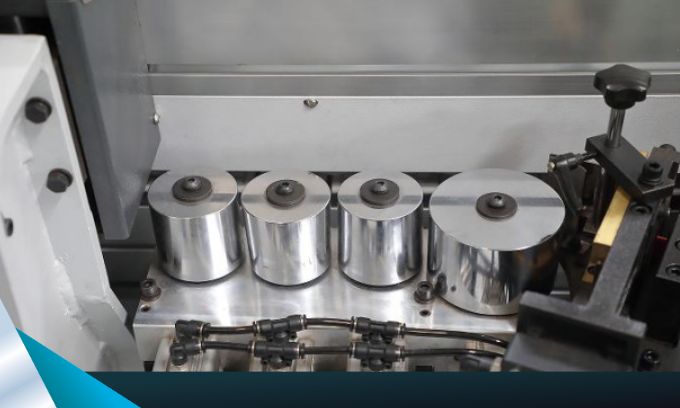

After the adhesive and edge tape are applied, the HH506R uses a four-wheel pressing unit to hold the tape against the panel edge as it passes through the bonding stage.
The successive rollers maintain pressure along the processed edge before the panel moves into the end-cutting and trimming stations.
Operational benefits:
After the edge tape has been applied and pressed, the HH506R uses an automatic end-cutting unit to trim the projecting tape at the front and rear of each panel.
The cutting assembly follows a precision linear guide and uses automatic profile tracking together with high-frequency cutting motors. This allows the leading and trailing tape overhangs to be cut flush with the ends of the processed panel before it moves to the trimming and corner-rounding stages.
Operational benefits:
After end cutting, the HH506R uses separate rough and fine trimming units to remove excess edge tape from the upper and lower sides of the panel.
The system uses large and small tracing discs to follow the processed panel edge while high-frequency cutting motors trim the projecting tape. This allows the tape to be machined into an R-shaped upper and lower edge profile before the panel moves to the corner-rounding and scraping stages.
Operational benefits:

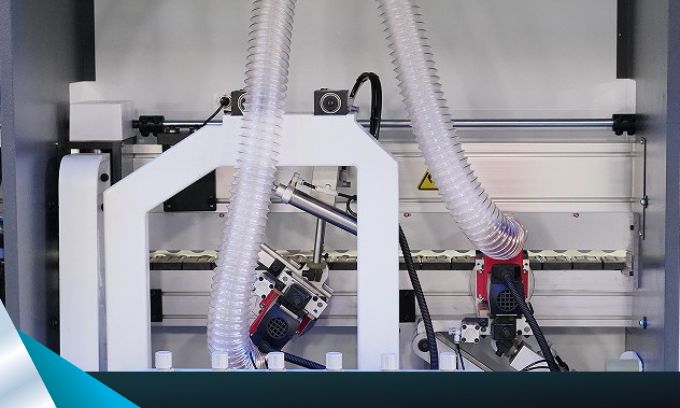

The HH506R uses left- and right-moving profiling units to machine the four corners of the applied edge tape into R-shaped profiles.
This stage takes place after the main trimming operations and processes the leading and trailing corners on both the upper and lower sides of the panel edge.
Integrated four-corner profiling is the clearest functional distinction between the HH506R and the HH506.
Operational benefits:
After the trimming and corner-rounding stages, the HH506R uses upper and lower scraping knives to refine the processed edge tape.
The scraping unit removes minor waviness and cutter marks left by the rotating trimming tools. Its profiled knives follow the R-shaped edge created during trimming, helping maintain a consistent profile along the upper and lower panel edges before the final buffing and cleaning stages.
Operational benefits:
The HH506R uses two rotating cloth buffing wheels as the final polishing stage after trimming, corner rounding and edge scraping.
The wheels clean the processed edge and smooth the finished edge-tape surface. The twin-wheel arrangement also helps distribute wear more evenly across the polishing system during operation.
Operational benefits:
After the buffing stage, the HH506R uses an air-blow cleaning unit to remove light dust and loose processing residue from the finished panel edge.
This final cleaning stage helps clear material left around the edge-banding area before the panel leaves the machine and moves to its next production stage.
Operational benefits:
The HH506R includes a cylinder-type automatic oiling system for the machine tracks.
Independent oil delivery supplies the tracks to support regular and even lubrication during operation.
Operational benefits:
The HH506R can be configured with selected optional equipment to suit different panel sizes, production layouts and additional processing requirements.
Optional equipment should be confirmed with PPM before ordering, as the final machine specification, dimensions, power requirements and processing sequence may vary according to the chosen configuration.
The standard HH506R pre-milling unit has a maximum working height of 40 mm. An optional configuration extends the maximum pre-milling height to 65 mm for taller panel edges.
An optional releasing and cleaning system can be added to help manage excess adhesive around the processed panel surface.
The front releasing stage sprays a separating agent before gluing to reduce adhesive sticking to the panel surface. The rear cleaning stage applies a cleaning agent later in the process to make remaining adhesive contamination easier to remove.
An optional small-panel feeding device helps guide suitable short or narrow components into the machine.
HUAHUA states that the system supports straighter panel feeding and helps reduce panel movement during edge processing.
The HH506R can be configured with additional grooving equipment for applications requiring a machined channel as part of the processing sequence.
Available configurations include:
The grooving position, cutter specification and motor power should be agreed with PPM against the intended panel application.
A reverse-model configuration is available for factory layouts requiring the HH506R to operate in the opposite feed direction.
The internal processing units and configuration remain equivalent to those of the conventional machine.
Confirming the correct HH506R configuration
PPM can review your panel dimensions, edge-tape specification, grooving requirements, feed direction and available factory space before confirming the appropriate HH506R configuration.
The HH506R is designed for manufacturers that need automatic straight-edge banding with integrated four-corner rounding and post-processing cleaning within one machine.
Its standard processing sequence includes pre-milling, EVA gluing, pressing, automatic end cutting, rough and fine trimming, four-corner profiling, scraping, buffing and air-blow cleaning. The machine also includes automatic panel-thickness positioning, PLC-based condition monitoring, fault self-testing and automatic track lubrication.
This makes the HH506R particularly relevant to panel-processing businesses that want to combine the main edge-banding and corner-finishing stages within one continuous production sequence.
What sets the HH506R apart:
A serious upgrade for growing workshops and lean factories.
The HH506 and HH506R both cover the principal stages of automatic edge banding, including pre-milling, adhesive application, pressing, end cutting, rough and fine trimming, scraping and buffing.
The main difference is that the HH506R includes integrated four-corner profiling. HUAHUA states that its left- and right-moving profiling units machine the four corners of the applied edge tape into R-shaped profiles.
The HH506 is therefore suited to manufacturers that require automatic straight-edge banding without a dedicated corner-rounding stage. The HH506R is the more appropriate option where rounded front and rear tape corners are required as part of the same processing sequence.
The correct choice depends on the required finished corner profile, panel dimensions, edge-tape specification and production workflow. PPM can compare both machines against the intended application before confirming a configuration.
The HH506R can operate as a stand-alone edge banding machine or form part of a woodworking machinery connected panel-production line.
In a typical workflow, sized panels can move from a beam saw or CNC router into the HH506R for pre-milling, gluing, pressing, trimming, four-corner rounding, scraping, buffing and air-blow cleaning. The processed panels can then continue to drilling, hardware preparation, assembly or sorting according to the factory layout.
HUAHUA’s production-line examples include edge banding machines connected with CNC routers, six-sided drilling machines, conveying and sorting equipment. The final sequence, handling equipment and required clearances should be planned around the manufacturer’s actual panel flow and production volumes.
Common Integration Points:
Installing the HH506R requires enough space for the machine itself, panel infeed and outfeed, operator access, servicing and connection to the required utilities.
The standard machine measures approximately 6660 × 1000 × 1700 mm and weighs around 2500 kg. The final layout should also allow for the selected feed direction, any optional equipment and the onward movement of processed panels.
PPM can review the proposed factory position, access route and production flow before delivery to identify potential installation issues at an early stage.
Factory-planning considerations:
The HUAHUA HH506R combines pre-milling, EVA gluing, pressing, automatic end cutting, rough and fine trimming, four-corner profiling, scraping, buffing and air-blow cleaning within one machine.
Speak to PPM about your panel dimensions, edge-tape specification, adhesive requirements, required corner profile, production volumes, optional equipment and available factory space.
PPM can provide technical information, configuration advice, UK installation, operator training and a tailored quotation.
Contact PPM to discuss the HH506R, request technical information or arrange a quotation.
Yes. The HH506R includes integrated left- and right-moving profiling units that machine the four corners of the applied edge tape into R-shaped profiles. This is the main functional difference between the HH506R and the HH506
Absolutely. The HH506R includes scraping, buffing, and air-blow cleaning to ensure a flawless finish on high-visibility panels.
The standard HH506R specification is based on an EVA adhesive system. A PUR glue-pot option may be available for selected configurations, but compatibility should be confirmed with PPM before ordering
The confirmed minimum panel dimensions are 120 mm in length and 95 mm in width. The standard supported panel-thickness range is 10–60 mm. An optional small-panel feeding auxiliary is also available to support suitable short or narrow components during processing.
Yes. HUAHUA offers an optional reverse-model configuration for factory layouts requiring the machine to operate in the opposite feed direction. Iinternal processing units and configuration remain equivalent to those of the conventional machine.
Yes. PPM can provide delivery planning, UK installation, machine setup and operator training for the HH506R. The proposed factory position, utilities, access route and production flow should be reviewed before delivery.
The standard processing sequence includes pre-milling, pressing, automatic end cutting, rough and fine trimming, four-corner rounding, scraping, buffing and air-blow cleaning.
The HH506R has selectable feed speeds of 15, 18 or 20 m/min. The appropriate setting will depend on the panel, edge tape and production requirements.
The confirmed edge-tape width range is 13–63 mm, with supported tape thicknesses from 0.4–3.0 mm.
Yes. The upper pressure beam adjusts according to the selected panel thickness, and the processing units are positioned to match the setting. A mechanical digital display shows the selected sheet thickness.
Yes. The machine uses PLC control and monitors equipment signal status. HUAHUA states that its self-checking system can display corresponding faults and stop the machine when a detected abnormal condition requires intervention.
Speak to PPM about the HUAHUA HH506R, including panel sizes, edge-tape specification, adhesive requirements, four-corner rounding, optional equipment and available factory space.
PPM can provide technical information, configuration advice, UK installation, operator training and a tailored quotation for the required machine specification.
Explore other HUAHUA edge banding machines available from PPM. Compare processing stages, corner-rounding capability, supported panel sizes, feed speeds and optional equipment to identify the most suitable configuration for your production requirements.
Receive updates from PPM about new HUAHUA machinery, technical information, product demonstrations, installations and panel-production solutions.
You can also contact the team directly to discuss edge banding, CNC routing, drilling, beam saws or complete machinery requirements.
