The HUAHUA HH618K is a high-speed automatic edge banding machine designed for larger-scale panel production.
It supports panel thicknesses from 10–60 mm, edge-tape thicknesses from 0.4–3.0 mm and selectable feed speeds of 20, 23 or 26 m/min. PPM supplies the HH618K with UK installation, operator training and technical support.
The HH618K Edge Banding Machine from HUAHUA is a high-speed automatic edge bander designed for repeated panel-finishing work in larger production environments.
The machine combines automated panel feeding and pressure control with pre-milling, adhesive application, edge-tape pressing, end cutting, rough and fine trimming, scraping, buffing, cleaning and lubrication systems within one processing line.
With selectable feed speeds of 20, 23 or 26 m/min, the HH618K is intended for furniture, cabinet, kitchen, bedroom, joinery and panel-processing manufacturers that require higher-throughput edge banding across compatible straight-edged panels.
| Specification | Value |
|---|---|
| Minimum panel length | ≥120 mm |
| Minimum panel width | ≥120 mm |
| Panel thickness | 10–60 mm |
| Edge-tape width | 13–63 mm |
| Edge-tape thickness | 0.4–3.0 mm |
| Feed speeds | 20 / 23 / 26 m/min |
| Total power | 31.8 kW |
| Working pressure | 0.65 MPa |
| Machine dimensions | 11700 × 1100 × 1974 mm |
| Approximate weight | 4000 kg |
The HH618K is intended for manufacturers that require high-speed automatic edge banding within a repeatable panel-production workflow.
Suitable applications include:
The HH618K combines the principal panel-handling, edge-banding and finishing stages within one linear processing sequence:
PPM can support machine selection, factory-layout planning, delivery, installation and operator training for the HH618K.
Final installation requirements should be confirmed against the ordered configuration, including electrical supply, compressed air, dust extraction, infeed and outfeed space, delivery access and maintenance clearance.
Speak to PPM about your panel dimensions, edge-tape specification, adhesive requirements, required feed speed, production volumes and available factory space.
PPM can confirm the appropriate HH618K configuration and provide technical information and a specification-based quotation.
The HUAHUA HH618K Edge Banding Machine is a high-speed straight edge bander designed for repeated panel-processing work, including furniture components, cabinetry and wooden-door production.
The machine combines reinforced panel feeding with automatic lubrication, pre-milling, edge preheating, PUR gluing with quick melt, pressing, double-rail end cutting, rough and fine trimming, scraping, flexible flat scraping, releasing and cleaning, air-blow cleaning and double buffing within one linear process.
Selectable feed speeds of 20, 23 or 26 m/min support different production requirements, while PPM’s supplied configuration processes edge tape from 0.4–3.0 mm thick and panels from 10–60 mm thick.
The reinforced backing and integrated feeding arrangement are specifically intended to improve panel stability, with HUAHUA highlighting suitability for wooden-door processing.
The HH618K is designed for manufacturers that need high-speed straight edge banding with reinforced panel handling, PUR gluing, double-rail end cutting and multiple finishing stages in one production sequence.
Its reinforced backing and integrated feeding arrangement are particularly relevant to wooden-door processing, while selectable feed speeds of 20, 23 and 26 m/min make it suitable for repeated batch production. HUAHUA specifically describes the feed system as being prepared for wooden doors.
Best suited to:
PPM can help assess whether the HH618K is suitable for your panel sizes, edge-tape specification, PUR adhesive requirements, required feed speed, production volumes and available factory space.
Support can include machine selection, configuration advice, delivery planning, UK installation, operator training and ongoing technical assistance.

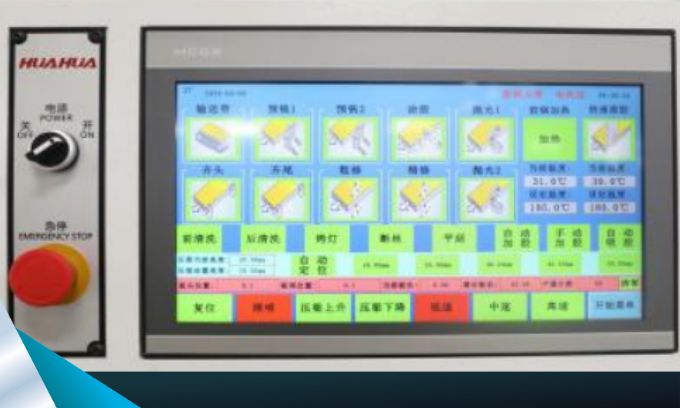

Large-format touchscreen for straightforward machine operation
The HH618K is operated through a 14-inch touchscreen interface designed to provide clear access to the machine’s principal controls. HUAHUA describes the display as simple, user-friendly and easy to operate.
The large screen gives operators a central control point for setting and managing the HH618K during production. The machine also uses a PLC-based electrical control system, with the manufacturer’s documentation identifying the PLC controller, inverter, AC contactors, relays and I/O extension modules within the electrical cabinet
Why It Matters:

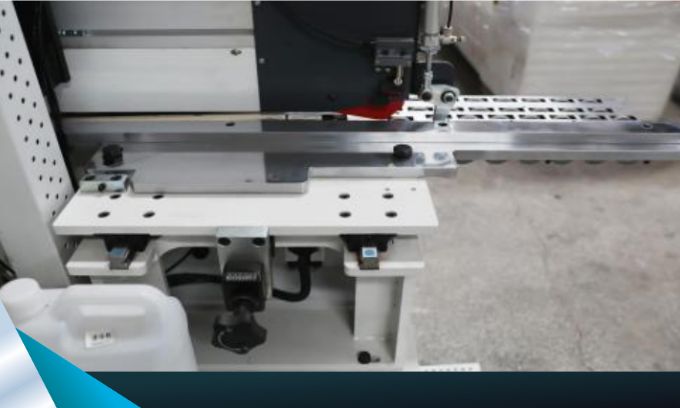

Additional support for stable panel feeding
The HH618K uses a reinforced panel-backing arrangement with a double-slider design and two rows of four sliders. HUAHUA states that this strengthens the panel-feeding support and helps improve stability as workpieces enter the machine.
The integrated feeding device is highlighted by the manufacturer as being particularly suitable for wooden-door processing. This makes the system relevant where larger or heavier straight-edged components require controlled support before entering the principal edge-banding stations.
Why It Matters:

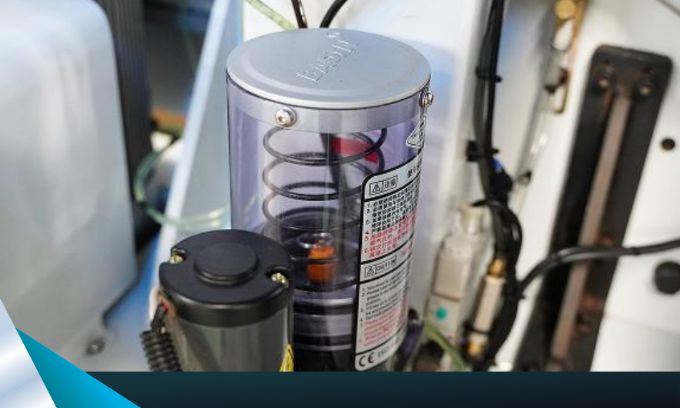

Timed lubrication for the guide rail and chain
The HH618K includes an automatic oil-lubrication system for the guide rail and chain. Lubrication is applied according to machine usage time and the number of edge-banding cycles.
This supports smoother movement through the processing line and helps reduce wear on the lubricated components over time.
Why It Matters:
Edge preparation before adhesive application
The HH618K uses a pre-milling unit with a 3.7 kW motor and two milling tools positioned at the front and rear. The unit removes saw marks, surface corrugations and expanded or damaged material from the panel edge before adhesive and edge tape are applied.
Its pre-milling height is increased to 80 mm, allowing the cutters to prepare a deeper edge area where required. This helps create a cleaner, more uniform bonding surface so the edge tape can sit closely against the panel.
Why It Matters:

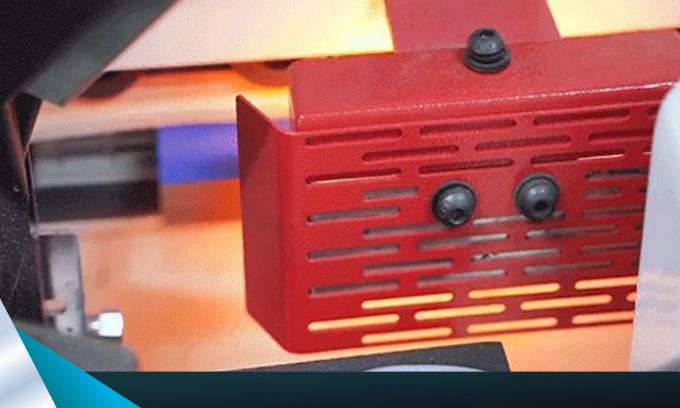

Preheats the panel edge before adhesive application
Before the adhesive is applied, the HH618K uses a heating lamp to warm the panel edge.
This helps reduce the effect of temperature differences between the workpiece and the adhesive, supporting a tighter bond between the edge tape and the panel.
Why It Matters:
Fast adhesive preparation for continuous production
The HH618K uses a PUR glue system with a quick-melt function. The glue pot can reach working condition in approximately 15 minutes at its fastest, helping reduce waiting time before production begins.
The gluing shaft is increased to 50 mm, compared with the manufacturer’s regular 36 mm version, to support the HH618K’s heavier-duty configuration.
During longer production runs, the quick-melt system helps maintain a ready supply of adhesive without repeated manual preparation.
Why It Matters:
Consistent pressure across the bonded panel edge
The HH618K pressing unit uses five metal pressure wheels and one rubber wheel, including an enlarged 150 mm wheel, to press the applied edge tape firmly against the panel.
The unit applies controlled pressure as the panel moves through the machine, helping maintain close contact between the tape and the prepared panel edge.
An integrated spray function also helps clean remaining glue around the pressing stage.
Why It Matters:

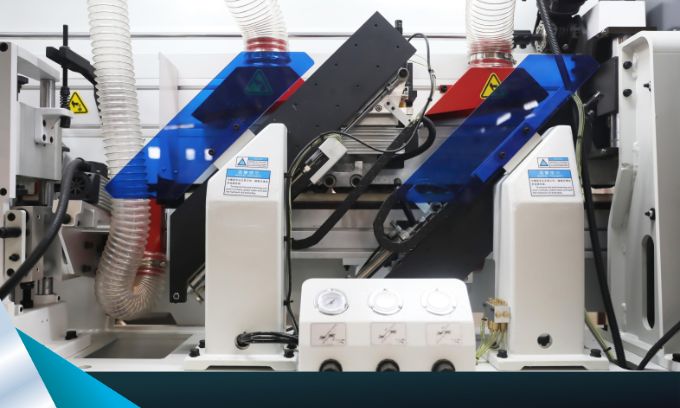

Independent front and rear trimming with precision linear guidance
The HH618K uses an independent double-rail end-cutting system with two motors and precision linear guides.
Automatic template tracking and high-frequency cutting are used to trim the projecting edge tape from the front and rear of each panel, producing a smooth, flush end finish.
Why It Matters:
Top and bottom edge trimming with an R-profile finish
The HH618K uses separate rough- and fine-trimming stages to remove excess edge tape from the upper and lower sides of the panel.
Large and small tracking discs guide the high-speed trimming units along the panel edge, helping shape the applied tape into a clean R-profile before the scraping and buffing stages.
The machine is configured for edge-tape thicknesses from 0.4–3.0 mm.
Why It Matters:

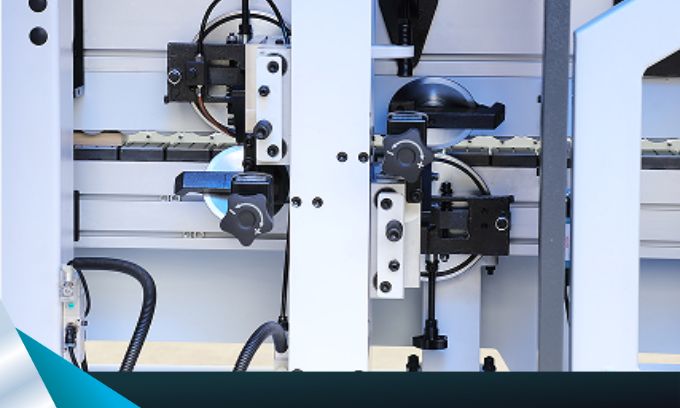

Refines the trimmed edge before final polishing
After rough and fine trimming, the HH618K uses profile scraping blades to remove fine cutter marks and small surface irregularities from the shaped edge tape.
The scraping stage follows the R-profile created by the trimming units, helping produce a smoother and more consistent edge before flat scraping, cleaning and buffing.
Why It Matters:
Removes excess adhesive from the upper and lower panel joints
The HH618K includes a flexible flat-scraping unit positioned after the profile-scraping stage.
It removes excess adhesive from the upper and lower joints where the edge tape meets the panel surface, helping leave a cleaner edge before the final cleaning and buffing stages.
This is particularly useful with PUR adhesive, where controlling residual glue around the bonded edge is important for maintaining a consistent finish.
Why It Matters:

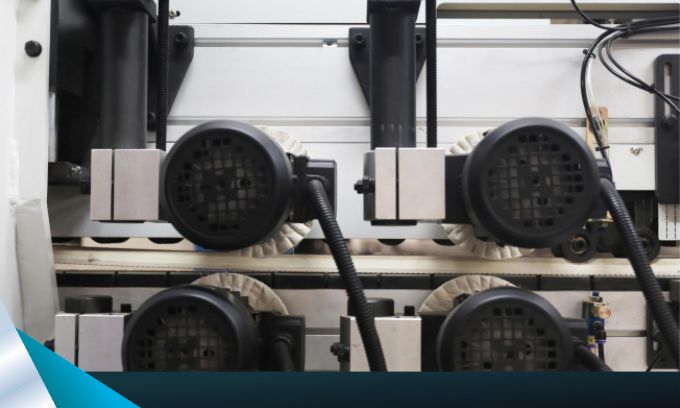

Two-stage polishing for the finished edge
The HH618K uses two buffing stages with rotating cloth wheels to polish the processed edge after scraping and cleaning.
The first stage begins the final polishing process, while the second provides an additional finishing pass. Together, they help remove fine residue and improve the smoothness and appearance of the edge before the panel leaves the machine.
Why It Matters:

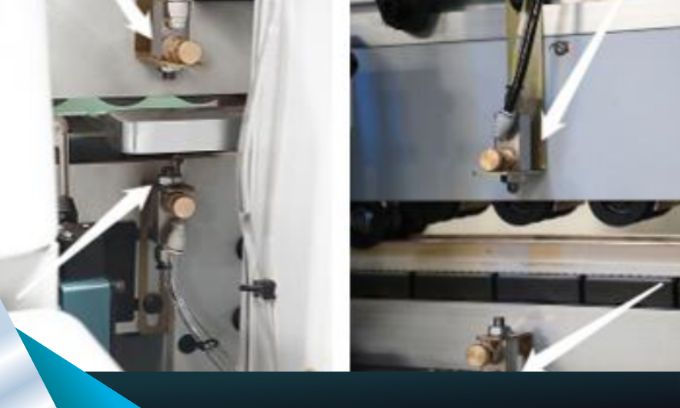

Controls adhesive residue before and after edge-tape application
The HH618K uses a two-stage releasing and cleaning system to help control adhesive residue during processing.
A releasing agent is applied before gluing to reduce the risk of adhesive sticking to the panel surface. After the edge tape has been applied, a cleaning agent is sprayed along the upper and lower edges to help remove remaining glue residue.
This supports a cleaner finished edge and reduces the amount of adhesive left on visible panel surfaces.
Why It Matters:
Removes fine dust and residue at the end of the process
After trimming, scraping and buffing, the HH618K uses an air-blow cleaning unit to direct compressed air across the processed edge.
This helps remove fine dust, loose particles and polishing residue before the panel leaves the machine or moves to the next production stage.
Why It Matters:
Independent adjustment for controlled panel pressure
The HH618K uses an independently adjustable pressure-beam lift with a reinforced 60 mm guide shaft and precision screw mechanism.
This allows the pressure beam to be set separately from the feed system, helping maintain controlled contact as panels move through the machine.
Why It Matters:

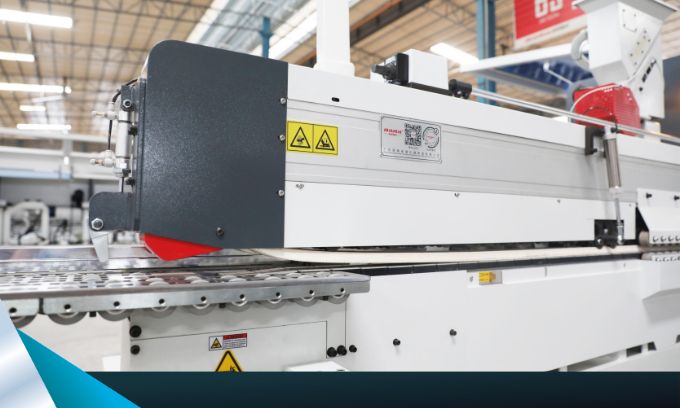

Continuous upper pressure for stable panel movement
The HH618K uses a crawler-type upper pressing system to hold the panel against the feed path as it moves through the machine.
The extended contact area helps support stable movement across the processing stations, particularly when the machine is operating at its selectable feed speeds of 20, 23 or 26 m/min.
Working alongside the conveying and pressure-beam systems, it helps maintain controlled panel contact throughout the edge-banding sequence.
Why It Matters:

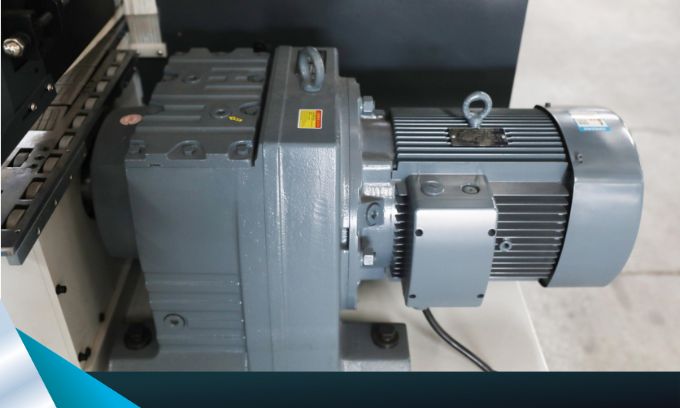

High-power drive for controlled panel movement
The HH618K uses a high-power conveying motor to drive panels through each stage of the edge-banding process.
Working with the crawler-type pressing system and feed arrangement, it supports controlled movement through the machine at selectable feed speeds of 20, 23 or 26 m/min.
This helps maintain a consistent production flow across the principal gluing, trimming, scraping, cleaning and buffing stations.
Why It Matters:
The HH618K is designed for manufacturers that need a higher-throughput edge-banding solution with reinforced panel handling and a comprehensive sequence of processing and finishing stages.
It combines PUR adhesive application, quick-melt preparation, pre-milling, double-rail end cutting, rough and fine trimming, scraping, flexible flat scraping, releasing and cleaning, air-blow cleaning and double buffing within one linear machine.
Selectable feed speeds of 20, 23 or 26 m/min allow the machine to be configured around different production requirements, while the PPM-supplied version supports panels from 10–60 mm thick and edge tape from 0.4–3.0 mm thick.
What Sets It Apart:
A strong option for furniture, door, cabinetry and panel manufacturers that need controlled handling and multiple finishing stages within a higher-speed edge-banding process.
The HH618K and HH506R are automatic edge banding machines designed for different production priorities.
Both machines cover the principal stages of edge preparation, adhesive application, edge-tape pressing, end cutting, trimming, scraping and buffing. The main distinction is that the HH506R includes integrated four-corner rounding, while the HH618K focuses on higher-speed straight-edge banding with reinforced panel handling and additional adhesive-cleaning and finishing systems.
The HH618K offers selectable feed speeds of 20, 23 and 26 m/min and includes a quick-melt PUR glue system, reinforced panel backing, double-rail end cutting, flexible flat scraping, releasing and cleaning, air-blow cleaning and double buffing.
The HH506R is the more appropriate option where the front and rear corners of the applied edge tape need to be rounded automatically as part of the same processing cycle.
The correct choice depends on panel dimensions, edge-tape specification, required corner profile, production volumes, adhesive requirements and available factory space. PPM can compare both models against your intended application before recommending a configuration.
The HH618K is designed for straight-edge banding across compatible furniture, door and panel components. Its reinforced feed arrangement and multiple pressure systems help support controlled processing through the machine’s gluing, trimming, scraping, cleaning and buffing stages.
The PPM-supplied configuration processes panels from 10–60 mm thick, with a minimum panel length and width of 120 mm. It accepts edge tape from 13–63 mm wide and 0.4–3.0 mm thick.
Suitable applications include:
Panel material, surface finish, dimensions and edge-tape compatibility should be confirmed with PPM before specifying the machine. This ensures the ordered HH618K configuration is suitable for the intended product and production process.
PPM does not publish a fixed price for the HH618K because the final quotation depends on the precise machine specification and the requirements of the installation.
The quoted price may be affected by the selected configuration, adhesive requirements, delivery location, site access, electrical and compressed-air provisions, installation, operator training and any additional production-line planning required.
This specification-based approach ensures the quotation reflects the machine and support package required for the intended application rather than presenting a headline price for a configuration that may not be suitable.
The HH618K is a high-speed edge banding machine for manufacturers that need reinforced panel handling, PUR adhesive application and multiple trimming, scraping, cleaning and buffing stages within one production line.
The PPM-supplied configuration supports panels from 10–60 mm thick, edge tape from 0.4–3.0 mm, and selectable feed speeds of 20, 23 or 26 m/min.
PPM can provide technical guidance, configuration advice, UK delivery, installation and operator training.
Contact PPM to request technical information, discuss your application or obtain a specification-based quotation.
The PPM-supplied HH618K configuration is specified for panels from 10–60 mm thick. Its minimum panel length and width are both 120 mm.
Yes. The HH618K includes a PUR glue system with quick-melt preparation and a reinforced 50 mm gluing shaft. Adhesive suitability and operating requirements should be confirmed for the intended panel and edge-tape combination.
The quick-melt PUR glue system can reach working condition in approximately 15 minutes at its fastest. Actual preparation time may vary according to the adhesive, operating conditions and machine setup.
The HH618K includes flat scraping, releasing and cleaning, air-blow cleaning and double buffing to help control adhesive residue and refine the finished edge. However, panel coating, protective-film requirements and surface compatibility should be confirmed with PPM before processing high-gloss or delicate materials.
The HH618K offers selectable feed speeds of 20, 23 and 26 m/min. The appropriate speed will depend on the panel, edge tape, adhesive and required finish.
Yes. PPM can provide delivery planning, UK installation, machine setup, spare parts and operator training for the HH618K. Factory access, electrical supply, compressed air, extraction and installation space should be confirmed before delivery.
The HH618K combines reinforced panel feeding, automatic lubrication, pre-milling, edge preheating, PUR gluing, pressing, double-rail end cutting, rough and fine trimming, edge scraping, flexible flat scraping, releasing and cleaning, air-blow cleaning and double buffing.
The HH618K is aimed at higher-throughput straight-edge banding and adds reinforced panel handling, selectable feed speeds up to 26 m/min, PUR quick-melt preparation, double-rail end cutting and additional cleaning and finishing stages. The HH506R includes integrated corner rounding, making it more suitable where four-corner profiling is required within the same processing cycle.
PPM does not publish a fixed HH618K price because the final quotation depends on the required configuration, delivery, installation, operator training and site requirements. Contact PPM for a specification-based quotation.
The HUAHUA HH618K is a high-speed edge banding machine designed for manufacturers that need reinforced panel handling, PUR adhesive application and multiple finishing stages within one production line.
Speak to PPM to discuss panel dimensions, edge-tape requirements, feed speed, factory space, delivery, installation and operator training.
We can provide technical information and a specification-based quotation for the HH618K configuration supplied by PPM.
Compare the HH618K with other HUAHUA edge banding machines available from PPM. Review alternative configurations and speak to our team for help selecting the most suitable model for your panel sizes, edge-tape requirements and production workflow.
