HP330CL - Rear Loading CNC Beamsaw

HP330CL CNC Rear Loading Beam Saw

HUAHUA HP330CL CNC Rear Loading Beam Saw – an industrial panel-cutting machine designed for furniture, kitchen, bedroom and cabinet manufacturers. Features a 3300 mm cutting length, up to 120 mm cutting thickness, CNC-controlled positioning, an independent scoring saw, servo-driven saw carriage and rear-loading panel feed system for accurate, repeatable production.

Categories: , , Brand:

Description

HP330CL Rear Loading Beam Saw Overview

The HUAHUA HP330CL is an industrial CNC rear loading beam saw designed for accurate, repeatable panel cutting in furniture, kitchen, bedroom, cabinet and panel-manufacturing environments.

With a maximum cutting length of 3300 mm and a maximum cutting thickness of 120 mm, the HP330CL is suitable for processing MDF, MFC, plywood, laminated boards and other compatible sheet materials.

Its rear-loading configuration and powered lifting platform support the automatic movement of panel stacks into the cutting area. CNC-controlled panel positioning works alongside an independent scoring saw and servo-driven saw carriage to support consistent cutting across repeated production batches.

Air-floating worktables and pneumatic clamps assist with panel positioning and handling at the operator side of the machine.

HP330CL CNC Beam Saw Specifications

Swipe sideways to view all specifications →
Specification Detail
Manufacturer HUAHUA
Model HP330CL
Machine type CNC rear loading beam saw
Maximum cutting length 3300 mm
Maximum cutting thickness 120 mm
Main saw blade diameter 380 mm, with 450 mm option
Main saw shaft diameter 75 mm
Main saw shaft speed 4000 rpm
Scoring saw blade diameter 200 mm
Scoring saw shaft diameter 50 mm
Scoring saw shaft speed 5200 rpm
Main saw motor 18.5 kW
Scoring saw motor 2.2 kW
Saw-carriage drive motor 2 kW AC servo
Saw-carriage forward speed Up to 100 m/min
Saw-carriage return speed Up to 120 m/min
Automatic feeding motor 2 kW AC servo
Automatic feeding speed Up to 85 m/min
High-pressure blower motor 3 kW + 2.2 kW
Side-aligner motor 0.25 kW
Lifting platform motor 2 kW
Total power 32.15 kW
Air pressure requirement 5–7 kg/cm²
Worktable height 980 mm
Air-floating tables 3
Approximate machine dimensions 5740 × 7600 × 2066 mm
Approximate net weight 6500 kg

HP330CL Applications and Suitable Manufacturers

The HP330CL CNC rear loading beam saw is designed for manufacturers processing full-size sheet materials and repeated panel-cutting batches. Its powered lifting platform and rear-loading arrangement are particularly relevant where panel stacks need to be introduced into the cutting system with reduced manual handling.

Typical applications include:

  • Kitchen and bedroom furniture production
  • Cabinet and carcass manufacturing
  • MDF door and furniture-front production
  • Commercial joinery and interior fit-out
  • Flat-pack and modular furniture manufacturing
  • Repeated batch production and panel component sizing
  • Production environments requiring rear-loading panel flow

Installation, Training and UK Support

Panel Production Machinery can support your project from initial machine selection and specification through to delivery, installation and operator handover.

Machine specification: Guidance on cutting capacity, rear-loading requirements, optional equipment and production needs.

Factory planning: Consideration of the larger machine footprint, lifting platform, panel-stack access and surrounding material-flow requirements.

Delivery and installation: Coordination of machine access, positioning and installation requirements.

Operator training: Practical guidance on machine controls, panel loading, cutting workflows and routine operation.

Technical support: Ongoing assistance with machine operation, maintenance and replacement-parts requirements.

Enquire About the HP330CL CNC Beam Saw

Speak to the PPM team about your panel sizes, materials, production volumes, loading requirements and workshop layout. We can help assess whether the rear-loading HP330CL is suitable and provide further technical information or a tailored quotation.

Call 01332 891507 or contact the PPM machinery team.

Reviews

There are no reviews yet.

Be the first to review “HP330CL CNC Rear Loading Beam Saw”

Your email address will not be published. Required fields are marked *

HP330CL CNC Rear Loading Beam Saw for Automated Panel Production

The HUAHUA HP330CL is a CNC rear loading beam saw designed for manufacturers that need accurate, repeatable panel sizing across ongoing production batches. Its powered rear lifting platform assists with introducing stacked sheet material into the cutting system, while CNC-controlled positioning, pneumatic clamping and a servo-driven saw carriage support consistent processing.

With a maximum cutting length of 3300 mm and a maximum cutting thickness of 120 mm, the HP330CL can process MDF, MFC, plywood, laminated boards and other compatible panel materials used in furniture, cabinetry, door and interior-fit-out production.

The rear-loading arrangement is particularly suited to workshops seeking to reduce manual panel handling and organise a more structured flow from board storage and loading through to cutting, drilling, routing, edge banding or assembly.

Who Is the HP330CL Rear Loading Beam Saw Designed For?

The HP330CL is designed for manufacturers that need a more structured approach to loading and cutting full-size sheet materials. Its rear lifting platform, CNC-controlled positioning and servo-driven saw carriage support repeatable panel processing across ongoing production batches.

  • Flat-pack furniture manufacturers
  • Kitchen, bedroom and cabinet manufacturers
  • Panel and sheet-material processors
  • MDF door and furniture-front producers
  • Interior fit-out and commercial joinery businesses

As the first stage in a wider panel-production workflow, the HP330CL can prepare accurately sized components for routing, CNC drilling, edge banding, pressing or assembly.

HP330CL - Rear Loading CNC Beamsaw

Discuss Your HP330CL Requirements

Planning a rear-loading panel-cutting installation or replacing an existing beam saw? Speak to PPM about your sheet sizes, materials, production volumes, factory layout and panel-loading requirements. We can help assess whether the HP330CL is suitable and provide technical information, installation guidance and a tailored quotation.

Key Features and Benefits of the HP330CL CNC Rear Loading Beam Saw

The HP330CL combines rear-loading panel handling with CNC-controlled positioning, pneumatic clamping and a servo-driven saw carriage. Its design is intended to support accurate, repeatable panel sizing while reducing the amount of manual handling required around the cutting station.

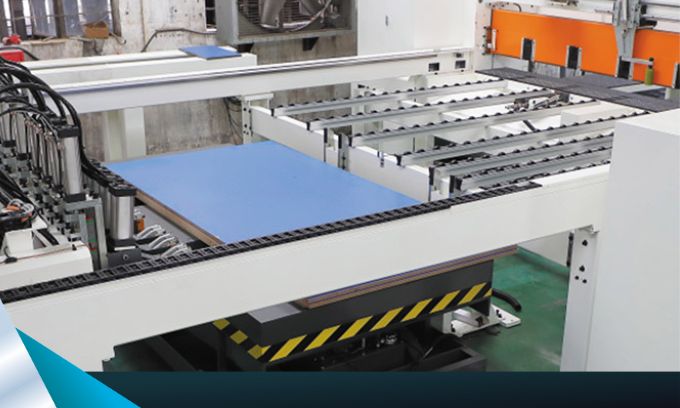

Powered Rear Lifting Platform

The rear lifting platform assists with raising sheet material into the loading position before it enters the cutting process. This can help organise panel flow, reduce repeated manual lifting and support more consistent loading across production batches.

Why it Matters:

  • Assists with loading full-size sheet materials
  • Reduces repeated manual lifting and repositioning
  • Supports a more structured rear-loading workflow
  • Helps maintain consistent panel presentation to the cutting system
  • Seamless integration with ERP-based cutting lists
HP330CL - Beamsaw - Rear Lifting Table Feeding - Panel Production Machinery

Heavy-Duty Steel Frame Construction

The HP330CL is built around a heavy-duty steel frame designed to support stable, repeatable cutting across ongoing production batches. The rigid structure helps reduce unwanted movement around the saw unit and provides a solid foundation for the machine’s positioning, clamping and cutting systems.

This is particularly important when processing full-size sheet materials, repeated panel stacks and heavier laminated boards, where consistent support can help maintain cutting accuracy over longer production runs.

HP330CL - Beamsaw - Main Steel Frame - Panel Production Machinery

OMRON Industrial PC and Touchscreen Control System

The HP330CL uses an OMRON industrial control system with a touchscreen interface to manage cutting jobs, machine settings and panel-positioning sequences. Operators can create, preview and simulate cutting patterns from the central terminal, helping them prepare jobs before material enters the cutting process and manage repeated production schedules more consistently.

Key benefits:

  • Central touchscreen control of cutting operations
  • Create, preview and simulate cutting patterns
  • Clear access to job settings and machine status
  • Supports barcode-based workflows where configured
  • Compatible with optional cutting optimisation software
HP330CL - Beamsaw - Industrial-PC-Control-System - Panel Production Machinery

Pneumatic Panel Clamping System

The HP330CL uses dual-finger pneumatic clamps to hold sheet material securely during positioning and cutting. The clamping system applies pressure across the panel to help reduce movement and support consistent, square cuts across repeated production batches.

Why it matters:

  • Helps reduce panel movement during cutting
  • Supports accurate positioning of full-size sheets
  • Suitable for laminated, decorative and high-gloss boards
  • Assists with consistent handling across repeated jobs
HP330CL - Beamsaw - Pneumatic-Clamping - Panel Production Machinery

High-Performance Saw Carriage Drive With Servo Motor

Driven by a 2 kW AC servo motor with precision rack-and-pinion gearing, the saw carriage travels at up to 100 m/min on the forward stroke and up to 120 m/min on the return stroke. Programmable acceleration and braking profiles support controlled movement and consistent cutting performance across repeated production jobs.

Performance highlights:

  • Faster return cycle for high-throughput production

  • Minimal wear over time
  • Accurate start and stop at the edge of the panel
HP330CL - Beamsaw - Saw-Carriage-Drive-Servo-Motor- Panel Production Machinery

Independent Scoring Saw and Main Saw System

The HP330CL uses separate main and scoring saw blades with independent lift motors, allowing the blade heights to be adjusted for different panel thicknesses. The scoring saw prepares the underside of laminated and decorative boards before the main blade completes the cut, supporting cleaner edges across repeated panel-processing jobs.

What makes it stand out:

  • Independent adjustment of the main and scoring saw blades
  • Reduced blade wear
  • Cleaner undersides on decorative and laminated panels
  • Supports consecutive jobs with different cutting depths
HP330CL - Beamsaw - Saw Carriage - Panel Production Machinery

Roller Conveyor System for Full-Size Panel Handling

Heavy-duty support rollers help operators move and position full-size sheet materials across the worktable with less manual effort. The conveyor system supports smoother panel movement through the cutting area and helps reduce unnecessary dragging across laminated, veneered and decorative surfaces.

Use case advantages:

  • Handles panels up to 3300 mm in length
  • Reduces the physical effort required to reposition large sheets
  • Supports smoother movement through the cutting workflow
  • Suitable for laminated, veneered and decorative panels
HP330CL - Beamsaw - Roller Conveyor - Panel Production Machinery

Automatic Main and Scoring Saw Height Adjustment

The HP330CL automatically adjusts the height of the main and scoring saw blades according to the selected cutting thickness. This supports faster job changeovers, consistent blade positioning and reduced manual adjustment around the saw unit.

Why it’s important:

  • Faster setup between different panel thicknesses
  • Maintains cutting-depth accuracy across multi-cut jobs
  • Reduces the need for manual blade-height adjustment
  • Helps limit operator interaction with the saw area
HP330CL - Beamsaw - Saw-Carriage-Lifting-Mechanism - Panel Production Machinery

Air-Floating Tables for Panel Handling

Air nozzles built into the table surface create a low-friction cushion that helps operators move and position large panels more easily. This supports smoother handling of full-size sheet materials and can help reduce dragging across laminated, decorative and high-gloss surfaces.

Key productivity gains:

  • Smoother movement of full-size panels
  • Reduced physical effort when positioning sheets
  • Helps limit surface dragging and marking
  • Supports safer, more controlled panel handling
HP330CL - Beamsaw - Cutting Bench - Panel Production Machinery

Optional Cutting Optimisation Software

Optional cutting optimisation software can support nesting, barcode-based job control, scheduling and offcut management. This helps manufacturers plan cutting sequences more efficiently, improve material utilisation and organise repeated production batches before jobs are sent to the HP330CL.

Software features:

  • Drag-and-drop nesting interface
  • Barcode printing and scan-to-cut workflows
  • Job scheduling and cutting-list management
  • Offcut tracking and reuse planning
  • Supports more efficient material utilisation
HP330CL - Beamsaw - Optional Cutting Optimisation Software - Panel Production Machinery

Optional Side Aligner for Accurate Panel Positioning

The optional side aligner helps position each panel squarely against the reference fence before cutting begins. It can compensate for minor panel misalignment and support more consistent positioning across repeated production batches.

Benefits:

  • Improved edge squareness
  • Reduced risk of positioning errors
  • Less rework caused by misaligned panels
  • More consistent results across longer production runs
HP330CL - Beamsaw - Optional Side Aligner Device - Panel Production Machinery

Why Choose the HP330CL CNC Rear Loading Beam Saw?

The HP330CL combines rear-loading panel handling, CNC-controlled positioning, a servo-driven saw carriage and an independent scoring saw system in one industrial panel-cutting machine. It is designed for manufacturers that need repeatable cutting, more structured material flow and reduced manual handling around the saw station.

  • Powered rear lifting platform for organised panel loading
  • Automatic feeding to support efficient production cycles
  • Independent scoring saw for cleaner laminated-panel edges
  • Servo-driven carriage with forward speeds up to 100 m/min
  • Air-floating tables and roller conveyors for easier sheet handling
  • Optional optimisation software and barcode-based workflows

For manufacturers comparing rear-loading beam saws from established European brands, the HP330CL provides a strong alternative with UK installation, operator training and technical support available through Panel Production Machinery.

HP330CL vs HP330: Which CNC Beam Saw Is Right for Your Factory?

The HP330 and HP330CL share the same 3300 mm cutting length and 120 mm maximum cutting thickness, but they are designed around different panel-loading workflows.

The HP330 is a front-loading CNC beam saw suited to workshops where operators introduce sheets from the front using air-floating tables. The HP330CL adds a powered rear lifting platform, making it more suitable for businesses that want to organise stacked panel loading from behind the cutting station and reduce repeated manual handling.

Swipe sideways to compare both models →
Feature HP330 HP330CL
Loading configuration Front loading Rear loading
Maximum cutting length 3300 mm 3300 mm
Maximum cutting thickness 120 mm 120 mm
Powered lifting platform No 2 kW rear lifting platform
Total power 30.15 kW 32.15 kW
Approximate machine dimensions 6560 × 5740 × 2060 mm 5740 × 7600 × 2066 mm
Approximate net weight 5800 kg 6500 kg
Best suited to Flexible front-fed panel production Structured rear-loading panel flow
View machine View the HP330 CNC Beam Saw Current machine

The best choice depends on available factory space, panel storage, production volume and how sheet material currently reaches the saw. PPM can review both models against your layout and production requirements.

Cutting Stacked Panels With the HP330CL

The HP330CL has a maximum cutting thickness of 120 mm, allowing compatible panels to be processed individually or in suitable stacks. The number of sheets within each stack depends on the thickness, material, condition and required cut quality of the panels.

The pressure beam, pneumatic clamping system and independent scoring saw help hold the material during the cutting cycle and support cleaner sizing across repeated batches. PPM can advise on suitable stack configurations for the materials being processed.

Integrating the HP330CL Into a Panel Production Workflow

The HP330CL can operate as a standalone rear loading CNC beam saw or form part of a wider woodworking machinery and panel-processing workflow. In many production environments, panel sizing is followed by routing, drilling, edge finishing or MDF door wrapping, depending on the components being manufactured.

Where optional cutting optimisation and barcode functionality are configured, production data can help organise cutting lists, identify components and coordinate repeated batches. The exact software and integration requirements should be assessed against your existing design, ERP and production systems.

Planning an HP330CL Rear Loading Beam Saw Installation

Installing the HP330CL requires planning for more than the machine body alone. The rear lifting platform needs suitable access for panel stacks, while the front of the machine requires adequate space for operator movement, cut components and onward production flow.

The HP330CL has approximate overall dimensions of 5740 × 7600 × 2066 mm and an approximate net weight of 6500 kg. The final installation plan should also consider service access, electrical supply, compressed air, dust extraction and the route used to deliver and position the machine.

Factory Planning Considerations

  • Space behind the machine for panel-stack loading
  • Clear access to the powered rear lifting platform
  • Front working space for cut panels and operators
  • Suitable electrical power and compressed-air provision
  • Dust-extraction connections and ducting route
  • Stable, level floor and appropriate load capacity
  • Delivery route, doorway sizes and machine positioning
  • Space for downstream drilling, routing, edge banding or assembly

PPM can assess the proposed location, material flow and service requirements before delivery, helping identify potential access or installation issues at an early stage.

What Materials Can the HP330CL CNC Beam Saw Cut?

The HP330CL is designed to cut a wide range of sheet materials used in furniture, cabinetry, interior fit-out and panel-processing applications.

  • MDF, MFC, particleboard and plywood
  • Laminated and melamine-faced panels
  • Acrylic and compatible composite sheets
  • Calcium carbonate boards
  • Lightweight sandwich panels
  • Wood-veneer core panels
  • High-gloss boards with protective films

Its main and scoring saw system supports repeatable panel sizing and cleaner edges across suitable sheet materials, preparing components for assembly, routing, drilling, edge banding or further finishing.

HP330-CNC-Beam-Saw-For-Wood
HP330-CNC-Beam-Saw-For-Wood (3)
HP330-CNC-Beam-Saw-For-Wood

Planning an HP330CL Project?

Planning a new rear-loading panel-cutting installation or upgrading an existing beam saw? Speak to the PPM team about your sheet sizes, materials, production volumes, factory layout and panel-loading requirements.

We can help assess whether the HP330CL is suitable, explain the available options and provide technical information, installation guidance and a tailored quotation.

Contact PPM to discuss the HP330CL, request a quotation or arrange a demonstration.

Frequently Asked Questions About the HP330CL CNC Beam Saw

What is the difference between the HP330CL and HP330?2026-07-30T12:00:27+00:00

The HP330CL includes a rear lifting platform for automatic sheet loading, allowing for faster throughput in continuous production environments. It’s better suited for factories processing large stacks or integrating with automated lines.

Can the HP330CL be operated by one person?2026-07-30T12:00:56+00:00

Yes. Features like the air-floating table, rear loading, and automatic clamps make it suitable for one-person handling in most setups. However, depending on the sheet size and output speed, some applications may require a second operator.

Can the HP330CL cut multiple stacked panels at once?2026-07-30T12:01:26+00:00

Yes. With a cutting thickness up to 120mm, the HP330CL can cut stacked sheets to increase cycle efficiency, provided the material type and finish quality requirements allow for batch cuts.

Is cutting optimisation software included with the HP330CL?2026-07-30T12:01:54+00:00

Basic operation software is included. Optional advanced nesting and barcode optimisation software is available on request.

Is the HP330CL a rear loading beam saw?2026-07-30T12:04:15+00:00

Yes. The HUAHUA HP330CL is a CNC rear loading beam saw with a powered lifting platform that assists with raising sheet material into the loading position. This supports a more structured panel flow and reduces repeated manual handling around the cutting station.

What is the maximum cutting length of the HP330CL?2026-07-30T12:04:41+00:00

The HP330CL has a maximum cutting length of 3300 mm, making it suitable for processing full-size sheet materials used in furniture, cabinetry, joinery and panel production.

What is the maximum cutting thickness of the HP330CL?2026-07-30T12:05:07+00:00

The maximum cutting thickness is 120 mm. The number of sheets that can be processed within this capacity will depend on the thickness and suitability of the individual panels.

Does the HP330CL include a scoring saw?2026-07-30T12:05:34+00:00

Yes. The HP330CL uses separate main and scoring saw blades with independent lift motors. The scoring saw prepares the underside of laminated and decorative panels before the main blade completes the cut, helping to produce cleaner edges and reduce underside breakout.

What materials can the HP330CL cut?2026-07-30T12:06:00+00:00

The HP330CL can process compatible sheet materials including MDF, MFC, particleboard, plywood, laminated and melamine-faced panels, wood-veneer core boards, high-gloss boards and suitable composite sheets. Material suitability should be confirmed with PPM when specifying the machine and blade configuration.

What factory services are required for installation?2026-07-30T12:06:26+00:00

Installation requirements will depend on the factory layout and final machine specification. Planning will normally need to consider suitable electrical power, compressed air, dust extraction, a stable level floor, machine access and sufficient space for the rear lifting platform, panel loading and operator movement. PPM can review these requirements before delivery.

Does PPM provide installation, training and technical support?2026-07-30T12:06:57+00:00

Yes. Panel Production Machinery can support the HP330CL project from machine specification and factory planning through to delivery, installation and operator handover. Ongoing technical assistance and replacement-parts support are also available.

get a free quote
HUAHUA HP330CL Rear Loading Beam Saw - Panel Production Machinery

Request a Quote for the HP330CL CNC Rear Loading Beam Saw

Interested in the HUAHUA HP330CL? Speak to PPM about your panel sizes, materials, production volumes, factory layout and rear-loading requirements.

We can provide further technical information, discuss the powered lifting platform and installation requirements, and prepare a tailored quotation for your business.

Request an HP330CL Quote

Compare Other HUAHUA CNC Beam Saws

Compare the HP330CL with other HUAHUA CNC beam saws, including front-loading and alternative rear-loading configurations. Explore different panel-handling arrangements and cutting capacities, or speak to PPM for help selecting the right machine for your production requirements.

HP380CL - Rear Loading Beam Saw

HP380CL CNC Beam Saw

View Cart
Details
HP380 Beamsaw

HP380 CNC Front Loading Beam Saw

View Cart
Details
HP330CL - Rear Loading CNC Beamsaw

HP330CL CNC Rear Loading Beam Saw

View Cart
Details
HP330 - Beamsaw

HP330 CNC Front Loading Beam Saw

View Cart
Details

Nationwide Supply of CNC Woodworking Machinery

Subscribe to Our Machinery Updates

Receive occasional machinery updates, installation case studies, production advice and new articles from Panel Production Machinery.

panel production machinery

eyre Industries Ltd

T/A Panel Production Machinery

Co: 09539054

VAT: 270222932

4 Bridgeman Terrace,
Wigan,
WN1 1SX
United Kingdom

UK Service Areas
say hello

P : 01332 891507
E : [email protected]

Privacy Policy

Cookie Policy

© 2012 - 2026• Panel Production Machinery are UKWoodworking CNC Machine Distributors • All Rights Reserved • Powered by Big Fish Social Media

panel production machinery
Phone : 01332 891507

Email : [email protected]

Go to Top
