HP380CL - Rear Loading Beam Saw

HP380CL CNC Beam Saw

HUAHUA HP380CL CNC Rear Loading Beam Saw – an automated large-format panel-cutting machine with a 3800 mm cutting length, 120 mm maximum cutting thickness and automatic rear lifting platform. Features four air-floating tables, independent scoring saw, servo-driven saw carriage and automatic panel feeding for repeatable furniture and panel production.

Categories: , Brand:

Description

HP380CL Rear Loading Beam Saw Overview

The HUAHUA HP380CL is an industrial CNC rear loading beam saw designed for automated cutting of longer sheet materials and large-format panel components.

With a maximum cutting length of 3800 mm and a maximum cutting thickness of 120 mm, the HP380CL is suitable for manufacturers processing MDF, MFC, plywood, laminated boards and other compatible panel materials.

An automatic rear lifting platform loads sheet materials into the cutting area, helping reduce repeated manual handling and organise panel flow in higher-volume production environments. CNC-controlled panel positioning works alongside pneumatic clamps, an independent scoring saw and a servo-driven saw carriage to support accurate, repeatable cutting.

HP380CL CNC Beam Saw Specifications

Swipe sideways to view all specifications →
Specification Detail
Manufacturer HUAHUA
Model HP380CL
Machine type CNC rear loading beam saw
Maximum cutting length 3800 mm
Maximum cutting thickness 120 mm
Maximum rear-loading size 3600 × 2100 mm
Main saw blade diameter 380 mm, with 450 mm option
Main saw shaft diameter 75 mm
Main saw shaft speed 4000 rpm
Scoring saw blade diameter 200 mm
Scoring saw shaft diameter 50 mm
Scoring saw shaft speed 5200 rpm
Main saw motor 18.5 kW
Scoring saw motor 2.2 kW
Saw-carriage drive motor 2 kW AC servo
Saw-carriage forward speed Up to 100 m/min
Saw-carriage return speed Up to 120 m/min
Automatic feeding motor 2 kW AC servo
Automatic feeding speed Up to 85 m/min
High-pressure blower motor 3 kW + 2.2 kW
Side-aligner motor 0.25 kW
Total power 32.15 kW
Air pressure requirement 5–7 kg/cm²
Worktable height 980 mm
Air-floating tables 4
Approximate machine dimensions 6612 × 8321 × 2066 mm
Approximate net weight 6300 kg

HP380CL Applications and Suitable Manufacturers

The HP380CL CNC beam saw is designed for manufacturers processing longer sheet materials, repeated cutting batches and higher-volume panel production.

Typical applications include:

  • Kitchen and bedroom furniture production
  • Cabinet, carcass and modular furniture manufacturing
  • Large-format furniture and interior panels
  • MDF door and furniture-front production
  • Flat-pack and customised furniture manufacturing
  • Commercial joinery and interior fit-out
  • Panel and sheet-material cut-to-size services
  • Repeated batch production and component sizing

Compatible materials can include MDF, MFC, particleboard, plywood, laminated boards, acrylic sheets, calcium-silicate boards and other suitable panel materials. Blade selection and cutting parameters should be confirmed for the material being processed.

Automatic Rear Loading and Panel Handling

The HP380CL uses an automatic rear lifting platform to load panel stacks into the cutting area. Infrared positioning helps identify the height of the upper sheet so the platform can lift to the required loading position.

The machine also uses rubber-coated two-finger clamps for automatic feeding at speeds of up to 85 m/min. Four air-floating tables and roller-assisted handling support panel movement across the front working area.

Installation, Training and UK Support

Panel Production Machinery can support your project from initial machine selection and factory planning through to delivery, installation and operator handover.

Machine specification: Guidance on cutting length, rear-loading capacity, panel sizes, optional equipment and production requirements.

Factory planning: Consideration of the rear lifting platform, four front air tables, machine footprint, operator space and material flow.

Delivery and installation: Coordination of access, unloading, machine positioning and installation requirements.

Operator training: Practical guidance on machine controls, automatic loading, panel handling, cutting workflows and routine operation.

Technical support: Ongoing assistance with machine operation, maintenance and replacement-parts requirements.

Enquire About the HP380CL CNC Beam Saw

Speak to the PPM team about your panel sizes, materials, production volumes and workshop layout. We can help assess whether the HP380CL’s 3800 mm cutting capacity and automatic rear-loading configuration are suitable for your production requirements.

Call 01332 891507 or contact the PPM machinery team for technical information or a tailored quotation.

Reviews

There are no reviews yet.

Be the first to review “HP380CL CNC Beam Saw”

Your email address will not be published. Required fields are marked *

HP380CL CNC Rear Loading Beam Saw for 3800 mm Panel Cutting

The HUAHUA HP380CL CNC beam saw is a high-capacity rear-loading panel saw designed for automated cutting in demanding furniture, joinery and panel-processing environments.

With a maximum cutting length of 3800 mm and a maximum cutting thickness of 120 mm, the HP380CL combines an automatic rear lifting platform, independently lifting main and scoring saws, and a Mitsubishi FX3U PLC control system to support organised panel flow and repeatable cutting across production batches.

The machine is suitable for compatible materials including MDF, particleboard, plywood, multi-layer panels, calcium silicate boards, acrylic sheets and aluminium-faced composites. Material suitability, blade configuration and cutting parameters should be confirmed for the specific product being processed.

Who Is the HP380CL CNC Beam Saw Designed For?

The HP380CL is designed for manufacturers that need automated rear loading, longer cutting capacity and repeatable panel sizing across higher-volume production work.

Its 3800 mm cutting length, automatic rear lifting platform, infrared stack-height positioning and independently adjustable main and scoring saws make it particularly suitable for businesses processing longer panels or repeated production batches.

Particularly suited to:

  • Flat-pack and ready-to-assemble furniture manufacturers
  • Kitchen, bedroom and cabinet production lines
  • Door, wall and partition component manufacturers
  • Panel and sheet-material cut-to-size suppliers
  • Commercial joinery and interior fit-out manufacturers
  • Businesses seeking to reduce repeated manual panel loading

As part of a wider panel-production workflow, the HP380CL can prepare accurately sized components for routing, drilling, edge banding, pressing or assembly, depending on the products being manufactured.

HP380CL - Rear Loading Beam Saw

Discuss Your HP380CL Requirements

Planning a new large-format panel-cutting installation or replacing an existing beam saw? Speak to PPM about your sheet sizes, materials, production volumes, factory layout and rear-loading requirements.

We can help you assess the HP380CL’s 3800 mm cutting length, automatic rear lifting platform and maximum rear-loading size against your production needs, then provide technical information, installation guidance and a tailored quotation.

Key Features and Benefits of the HP380CL CNC Beam Saw

The HP380CL combines automated rear loading, CNC-controlled panel positioning and independently adjustable main and scoring saw systems to support repeated large-format panel cutting.

Its 3800 mm cutting length, infrared-guided lifting platform, servo-driven carriage and panel-handling features are designed to help manufacturers organise material flow, reduce repeated manual loading and maintain consistent settings across production batches.

Automatic Pressure Beam and Saw Blade Height Positioning

The HP380CL automatically adjusts the pressure beam and saw blade height according to the programmed panel thickness. This reduces the need for repeated manual height changes and supports faster setup when moving between compatible materials or stack configurations.

Controlled positioning of the pressure beam helps hold the material during the cutting cycle, while the blade-height adjustment supports appropriate engagement of the main and scoring saw systems.

Operational benefits:

  • Reduced manual height adjustment between suitable panel thicknesses
  • Faster setup during production changeovers
  • Supports consistent material holding during cutting
  • Helps maintain suitable main and scoring saw engagement
  • Useful for repeated panel and stacked-cutting batches
HP380CL Beamsaw -Automatic Pressure Beam & Saw Blade Positioning

Independent Main and Scoring Saw Height Adjustment

The HP380CL uses independently adjustable main and scoring saw systems, allowing the cutting stroke to be configured according to the programmed panel thickness.

By limiting unnecessary blade travel, the system can support more efficient cutting cycles and reduce idle movement. The saw carriage operates at up to 100 m/min on the forward stroke and up to 120 m/min on the return stroke, helping organise repeated panel-cutting batches efficiently.

Operational benefits:

  • Independent adjustment of the main and scoring saw systems
  • Cutting stroke configured according to panel thickness
  • Reduced unnecessary blade travel and idle movement
  • Supports faster repeated cutting cycles
  • Return speed of up to 120 m/min
HP380CL Beamsaw -Independent Lifting of Main & Scoring Saws

Four Air-Floating Tables for Controlled Panel Handling

The HP380CL uses four air-floating tables across the front working area to support and position large sheet materials after they have been fed from the rear-loading system.

Air nozzles within the table surfaces create a low-friction cushion, helping operators move and align panels with less physical effort. The worktable design also helps reduce dragging across laminated, veneered, coated and high-gloss surfaces during positioning.

  • Four air-floating tables for extended panel support
  • Reduced friction when positioning large sheets
  • Helps limit dragging and surface marking
  • Supports controlled panel alignment before cutting
  • Useful for longer and heavier panel materials
HP380CL Beamsaw -Upgraded Worktable Design for Surface Protection

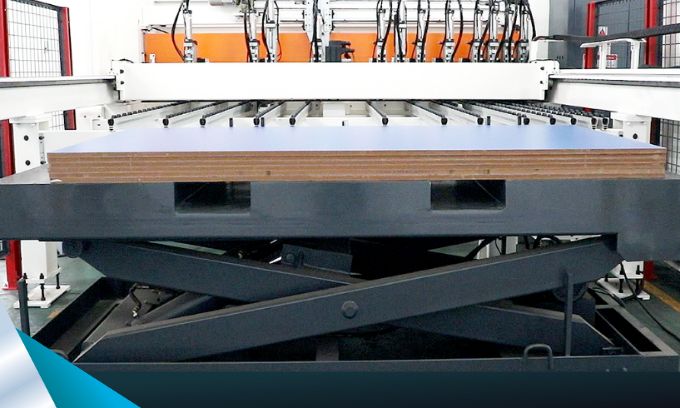

Automatic Rear Lifting Platform With Infrared Positioning

The HP380CL uses an automatic rear lifting platform to raise panel stacks to the required feeding height. Infrared positioning detects the height of the upper sheet and helps the platform adjust to the appropriate loading level before material is fed into the cutting area.

This rear-loading arrangement can reduce repeated manual panel handling and support a more organised flow of material during batch production. The supplied specification also states a maximum rear-loading size of 3600 × 2100 mm.

  • Automatic rear lifting for stacked panel loading
  • Infrared positioning identifies the upper sheet height
  • Helps maintain a suitable panel-feeding level
  • Reduces repeated manual lifting and repositioning
  • Supports organised material flow during batch production
  • Maximum rear-loading size of 3600 × 2100 mm
HP380CL Beamsaw -Automatic Rear Lifting Platform

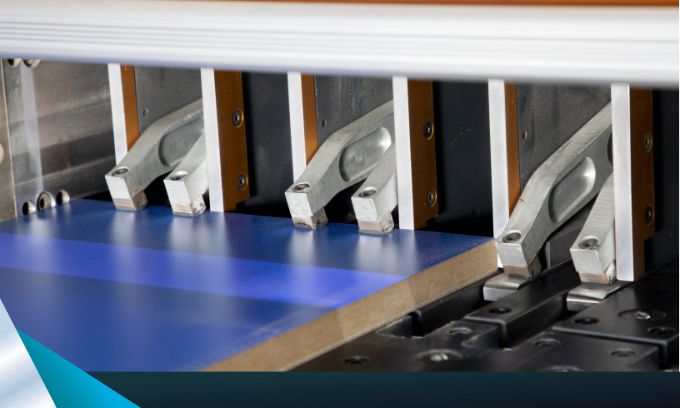

Rubber-Coated Two-Finger Panel Clamps

he HP380CL uses ten two-finger clamps with rubber-coated contact surfaces to grip and feed sheet material through the cutting cycle. The clamp design helps distribute holding pressure across the panel while reducing direct metal contact with laminated, veneered, coated and high-gloss surfaces.

Working with the automatic feeding system, the clamps support panel movement at speeds of up to 85 m/min and help maintain controlled positioning during repeated cutting batches.

  • Ten two-finger clamps for automatic panel feeding
  • Rubber-coated contact surfaces help reduce marking
  • Supports controlled material holding during movement
  • Automatic feeding speed of up to 85 m/min
  • Suitable for repeated panel and batch-production workflows
HP380CL Beamsaw -Rubberised Two-Finger Clamping System

Magnetic Scale Positioning for Controlled Panel Setup

The HP380CL uses dual positioning scrapers together with a magnetic scale system to support panel-thickness positioning according to the programmed cutting parameters.

This arrangement helps reduce repeated manual adjustment and provides the control system with position feedback during setup. Correct positioning will still depend on the programmed values, material condition and machine calibration.

  • Magnetic scale feedback for panel-positioning control
  • Dual positioning scrapers support material setup
  • Settings can be matched to programmed panel parameters
  • Reduces repeated manual positioning adjustments
  • Supports consistent setup across repeated cutting batches
HP380CL Beamsaw -Magnetic Scale Positioning

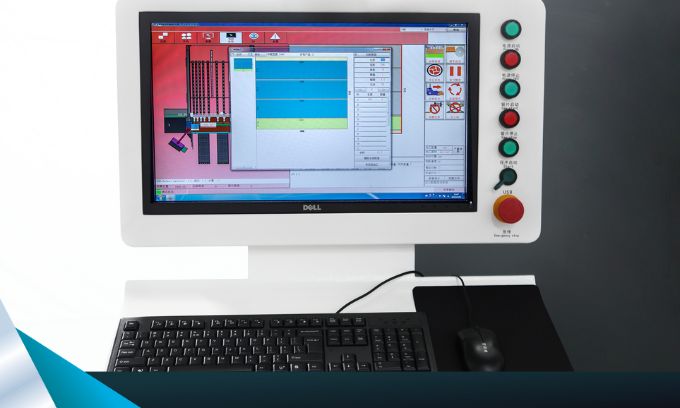

Touchscreen Control Interface

The HP380CL is operated through an industrial colour touchscreen mounted on a single-arm support. The interface provides access to machine settings, operating functions and system information from the main control position.

Operators can use the display to review programmed cutting parameters, manage production settings and view machine-status information during operation. The single-arm mounting arrangement also allows the screen to be positioned for practical access around the control station.

  • Central touchscreen access to machine controls and settings
  • Displays programmed cutting and production parameters
  • Provides machine-status and operating information
  • Single-arm mounting supports practical screen positioning
  • Works alongside the Mitsubishi FX3U PLC control system
HP380CL Beamsaw - Intelligent Touchscreen Control Interface

Mitsubishi FX3U PLC Control System

The HP380CL uses a Mitsubishi FX3U programmable logic controller to coordinate machine functions and automated operating sequences.

The FX3U platform supports high-speed command processing, with basic instructions processed from 0.065 μs per instruction, and provides up to 64,000 steps of built-in programme memory. Mitsubishi also supports multi-axis high-speed pulse positioning on compatible transistor-output FX3U configurations.

Within the HP380CL, the PLC works alongside the touchscreen interface and machine-control components to manage programmed cutting settings, panel feeding and coordinated movement.

  • Mitsubishi FX3U industrial PLC platform
  • Basic-instruction processing from 0.065 μs per instruction
  • Up to 64,000 steps of programme memory
  • Supports coordinated machine-control sequences
  • Works with the touchscreen operating interface
  • Provides the control foundation for automated feeding and cutting functions
HP330CL - Beamsaw - Saw-Carriage-Lifting-Mechanism - Panel Production Machinery

Machine Status and I/O Monitoring

The HP380CL control system monitors input and output signals from connected machine components during operation. Status information and detected faults can be presented through the control interface to help operators identify irregular conditions and support troubleshooting.

Depending on the programmed control logic and the condition detected, the system may interrupt the operating sequence or prevent the next cycle from starting until the issue has been checked.

  • Monitors input and output signals from connected components
  • Displays machine-status and fault information through the control interface
  • Helps operators identify irregular operating conditions
  • Supports fault diagnosis and maintenance checks
  • Can interrupt or inhibit operation where the programmed logic requires it
HP330CL - Beamsaw - Cutting Bench - Panel Production Machinery

Optional Cutting Optimisation Software

Optional cutting optimisation software can be used to organise panel layouts, combine compatible jobs and prepare cutting plans based on sheet sizes and production requirements.

This can help manufacturers improve material utilisation, reduce planning time and structure repeated cutting batches before jobs are sent to the HP380CL.

  • Panel-layout and nesting functions
  • Supports combined production of compatible orders
  • Helps organise repeated cutting batches
  • Can assist with offcut reduction and material utilisation
  • Reduces manual cutting-plan preparation
  • May support barcode-based production workflows, depending on the selected software configuration
HP330CL - Beamsaw - Optional Cutting Optimisation Software - Panel Production Machinery

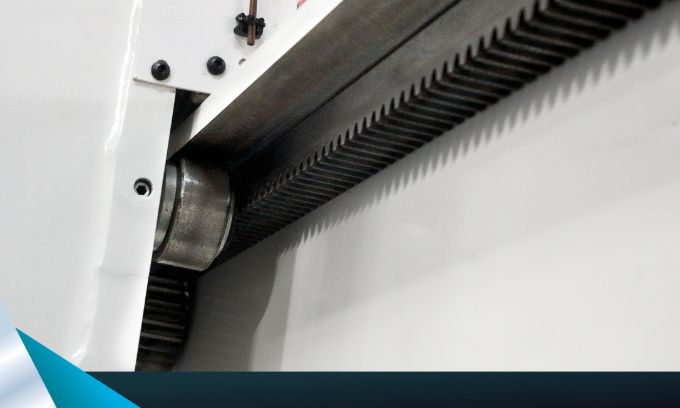

Ground Rack-and-Pinion Saw Carriage Drive

The HP380CL uses a six-level ground rack-and-pinion transmission system to guide movement of the saw carriage during the cutting cycle.

The geared drive arrangement supports controlled carriage movement across repeated forward and return strokes. Correct alignment, lubrication and routine maintenance remain important for preserving positioning performance over the machine’s working life.

  • Ground rack-and-pinion transmission for saw-carriage movement
  • Supports controlled forward and return travel
  • Suitable for repeated high-speed cutting cycles
  • Robust mechanical drive arrangement
  • Automatic lubrication helps support routine maintenance
HP380CL Beamsaw - High-Precision Rack & Pinion Drive System

Emergency Pull-Cord Stop System

The HP380CL is fitted with emergency pull-cord switches positioned along the machine so an operator can trigger an emergency stop from accessible points around the working area.

Activating the pull cord sends a stop signal to the machine-control system so the operating sequence can be interrupted in accordance with the machine’s safety configuration. The system should be checked routinely and used alongside the manufacturer’s operating, guarding and emergency procedures.

  • Emergency-stop access from positions along the machine
  • Pull-cord arrangement supports rapid operator intervention
  • Sends a stop signal to the machine-control system
  • Supports the machine’s wider safety-control arrangement
  • Can be checked as part of routine safety inspections
HP380CL Beamsaw -Emergency Pull Switch for Immediate Shutdown

Automatic Lubrication System

The HP380CL includes an automatic lubrication system that delivers lubricant to designated machine components at programmed intervals.

Regular lubricant delivery can help support smooth mechanical movement and reduce the need for repeated manual lubrication. The system does not replace routine inspection, cleaning or the manufacturer’s scheduled maintenance requirements.

  • Automatic lubricant delivery at programmed intervals
  • Supports regular lubrication of designated moving components
  • Reduces repeated manual lubrication tasks
  • Helps support consistent mechanical movement
  • Should be checked as part of routine machine maintenance
HP380CL Beamsaw- Automatic Lubrication for Long-Term Reliability

Why Choose the HP380CL CNC Rear Loading Beam Saw?

The HP380CL is designed for manufacturers that need 3800 mm cutting capacity, automated rear loading and controlled panel handling within repeated production workflows.

Its automatic rear lifting platform, infrared stack-height positioning, four air-floating tables and servo-driven feeding system help organise the movement of longer sheet materials from loading through to cutting. Independently adjustable main and scoring saw systems, Mitsubishi FX3U PLC control and optional optimisation software support programmed batch production.

Key reasons to consider the HP380CL:

  • 3800 mm maximum cutting length
  • Automatic rear lifting platform for stacked-panel loading
  • Maximum rear-loading size of 3600 × 2100 mm
  • Infrared positioning for panel-stack height detection
  • Four air-floating tables for front working-area support
  • Ten rubber-coated two-finger feeding clamps
  • Automatic feeding speed of up to 85 m/min
  • Independently adjustable main and scoring saw systems
  • Mitsubishi FX3U PLC and touchscreen control interface
  • Optional cutting optimisation and barcode-based workflows

The HP380CL is particularly relevant for furniture, cabinet, door, joinery and panel-processing businesses that regularly handle longer panels and want to reduce repeated manual loading. PPM can assess the machine against your sheet sizes, production volumes, factory layout and downstream machinery.

HP380CL vs HP380: Rear Loading or Front Loading?

The HP380CL and HP380 both provide a maximum cutting length of 3800 mm and a maximum cutting thickness of 120 mm, but they are designed around different panel-loading workflows.

The HP380 is a front-loading CNC beam saw that uses four air-floating tables for operator-led sheet handling. The HP380CL adds an automatic rear lifting platform, allowing suitable panel stacks to be raised and fed from behind the cutting station.

Swipe sideways to compare both models →
Feature HP380 HP380CL
Loading configuration Front loading Automatic rear loading
Maximum cutting length 3800 mm 3800 mm
Maximum cutting thickness 120 mm 120 mm
Air-floating tables 4 4
Rear lifting platform No Yes
Maximum rear-loading size Not applicable 3600 × 2100 mm
Approximate dimensions 7060 × 6040 × 2060 mm 6612 × 8321 × 2066 mm
Approximate net weight 6300 kg 6300 kg
Best suited to Operator-led front loading Automated stacked-panel loading
View machine View the HP380 CNC Beam Saw Current machine

The best configuration depends on panel flow, available factory space, production volumes and the amount of manual sheet handling involved. PPM can assess both machines against your proposed installation.

HP380CL vs HP330CL: Which Rear-Loading Beam Saw Is Right for Your Factory?

The HP380CL and HP330CL both use automatic rear lifting platforms, but they provide different cutting capacities.

The HP330CL has a maximum cutting length of 3300 mm, while the HP380CL extends this to 3800 mm. The HP380CL is therefore better suited to businesses that regularly process longer sheets or large-format furniture, door and interior components.

Swipe sideways to compare both models →
Feature HP330CL HP380CL
Loading configuration Automatic rear loading Automatic rear loading
Maximum cutting length 3300 mm 3800 mm
Maximum cutting thickness 120 mm 120 mm
Air-floating tables 4 4
Total power 32.15 kW 32.15 kW
Best suited to Standard full-size panel production Longer panels and large-format components
View machine View the HP330CL CNC Beam Saw Current machine

The decision should be based on the longest panels being processed, available floor space and whether the additional 500 mm of cutting capacity provides a practical production benefit.

Integrating the HP380CL Into a Panel Production Workflow

The HP380CL can operate as a standalone CNC rear loading beam saw or form part of a wider woodworking machinery and panel-processing workflow. In many production environments, large-format panel sizing is followed by routing, drilling, edge finishing, MDF door wrapping or assembly, depending on the components being manufactured.

Its automatic rear loading system can help organise the first stage of panel processing where repeated batches or longer sheet materials need to be prepared for downstream production.

Where optional cutting optimisation, barcode functionality or production software are configured, job data can help organise cutting lists, identify components and coordinate repeated batches. The exact connection with CAD/CAM, ERP, nesting or barcode systems should be assessed against the manufacturer’s software configuration and the factory’s existing production systems.

Planning an HP380CL CNC Rear-Loading Beam Saw Installation

The HP380CL requires planning for both the main cutting station and the automatic lifting platform positioned behind the machine.

The machine has approximate dimensions of 6612 × 8321 × 2066 mm and an approximate net weight of 6300 kg. The layout must also provide sufficient space for the four front air-floating tables, rear panel-stack loading, operator movement, servicing and the onward handling of cut components.

Factory Planning Considerations

  • Rear access for loading panel stacks
  • Space for the automatic lifting platform

  • Space to accommodate panels up to the stated 3600 × 2100 mm maximum rear-loading size

  • Clear working area around the four front tables
  • Stable, level floor with suitable load capacity
  • Electrical power and compressed-air supplies
  • Dust-extraction connection and ducting route
  • Delivery, unloading and machine-positioning access
  • Safe operator and maintenance access
  • Space for downstream routing, drilling or edge finishing

PPM can review the proposed factory location, delivery route, floor space and service requirements before installation, helping identify potential access or layout issues at an early stage.

What Materials Can the HP380CL CNC Beam Saw Cut?

The HP380CL is designed to process a range of compatible sheet materials used in furniture, cabinetry, joinery, interior fit-out and panel-manufacturing applications.

Material suitability will depend on the sheet construction, thickness, blade selection and programmed cutting parameters.

  • MDF, MFC, particleboard and plywood
  • Multi-layer and laminated panels
  • Melamine-faced boards
  • Acrylic and compatible composite sheets
  • Calcium silicate and calcium carbonate boards
  • Lightweight sandwich panels
  • Wood-veneer core materials
  • High-gloss and film-protected boards
  • Aluminium-faced composite panels, subject to specification and blade suitability

The independent main and scoring saw systems support repeatable panel sizing across suitable materials, while the four air-floating tables and rubber-coated clamps help with controlled handling during loading and positioning.

PPM can review the material specification and advise on the appropriate blade configuration and cutting settings before the machine is supplied.

HP330-CNC-Beam-Saw-For-Wood
HP330-CNC-Beam-Saw-For-Wood (3)
HP330-CNC-Beam-Saw-For-Wood

Discuss Your HP380CL Rear Loading Beam Saw Project

Planning to increase panel-cutting capacity or introduce automated rear loading for longer sheet materials? Speak to PPM about your panel sizes, materials, production volumes and factory layout.

We can help assess whether the HP380CL’s 3800 mm cutting length, automatic rear lifting platform and 3600 × 2100 mm maximum rear-loading size are suitable for your production requirements, then provide technical information, installation guidance and a tailored quotation.

Contact PPM to discuss the HP380CL, request a quotation or arrange a demonstration.

Frequently Asked Questions About the HP380CL CNC Beam Saw

What is the maximum cutting thickness of the HP380CL?2026-08-04T07:13:47+00:00

The HP380CL has a maximum cutting thickness of 120 mm. Compatible panels can be processed individually or in suitable stacks, depending on their thickness, material, condition and required cut quality.

What materials can the HP380CL cut?2026-08-04T07:16:14+00:00

The HP380CL can process compatible materials including MDF, MFC, particleboard, plywood, laminated and melamine-faced panels, wood-veneer core materials, acrylic sheets and suitable composite boards. Material suitability depends on panel construction, thickness, blade selection and cutting parameters.

Does the machine support barcode scanning and optimisation software?2025-06-16T13:07:34+00:00

Yes, the HP380CL can be configured with optional barcode scanning and job batching tools. Optimisation software is also available to streamline cutting plans and reduce waste.

How does the rear lifting platform work?2025-06-16T13:06:52+00:00

The platform uses infrared sensors to detect panel height and automatically raises the stack to the correct loading level, improving both accuracy and operator efficiency.

What is the automatic panel-feeding speed?2026-08-04T07:17:34+00:00

The HP380CL’s automatic feeding system operates at speeds of up to 85 m/min. Ten rubber-coated two-finger clamps help hold and move suitable sheet materials during the feeding cycle.

How fast does the saw carriage operate?2025-06-16T13:05:29+00:00

The saw carriage travels forward at up to 100m/min and returns at speeds of up to 120m/min for fast cycle times.

What is the total power requirement of the HP380CL?2026-08-04T07:34:40+00:00

The stated total power of the HP380CL is 32.15 kW. The final electrical supply and installation requirements should be confirmed with PPM during factory planning.

What are the dimensions of the HP380CL?2026-08-04T07:15:31+00:00

The HP380CL has approximate machine dimensions of 6612 × 8321 × 2066 mm and an approximate net weight of 6300 kg. Additional space is required for delivery access, operator movement, servicing and handling sheet materials around the machine.

What kind of maintenance does the HP380CL require?2025-06-16T13:03:17+00:00

The machine is fitted with an automatic lubrication system that reduces maintenance frequency. Routine checks and cleaning are recommended for optimal performance.

What is the maximum cutting length of the HP380CL?2026-08-04T07:18:59+00:00

The HP380CL has a maximum cutting length of 3800 mm, making it suitable for longer sheet materials and large-format panel components.

Is the HP380CL a Rear-Loading Beam Saw?2026-08-04T07:37:43+00:00

Yes. The HP380CL is a CNC rear loading beam saw with an automatic lifting platform positioned behind the cutting station. It raises panel stacks to the required feeding level before material is moved into the cutting area.

What is the maximum rear-loading size of the HP380CL?2026-08-04T07:19:56+00:00

The supplied HUAHUA specification states a maximum rear-loading size of 3600 × 2100 mm. The sheet sizes, stack format and factory material flow should be reviewed when specifying the installation.

What is the difference between the HP380CL and HP380?2026-08-04T07:20:30+00:00

Both machines provide a maximum cutting length of 3800 mm and a maximum cutting thickness of 120 mm. The HP380 is a front-loading beam saw, while the HP380CL adds an automatic rear lifting platform for stacked-panel loading and reduced repeated manual handling.

What is the difference between the HP380CL and HP330CL?2026-08-04T07:21:02+00:00

Both models use an automatic rear-loading configuration. The HP380CL provides a longer maximum cutting length of 3800 mm, compared with 3300 mm on the HP330CL, and is intended for manufacturers processing longer panels or larger-format components.

Does the HP380CL include a scoring saw?2026-08-04T07:21:29+00:00

Yes. The HP380CL includes an independent scoring saw alongside the main saw. The scoring blade prepares the underside of suitable laminated and decorative panels before the main blade completes the cut, helping reduce underside breakout.

Does PPM provide installation, training and technical support?2026-08-04T07:21:57+00:00

Yes. PPM can support the project from machine specification and factory planning through to delivery, installation and operator handover. Ongoing technical and replacement-parts support is also available.

get a free quote
HUAHUA HP380CL Rear Loading Beam Saw -- Panel Production Machinery

Request a Quote for the HP380CL CNC Rear Loading Beam Saw

Interested in the HUAHUA HP380CL? Speak to PPM about your panel sizes, materials, production volumes, rear-loading requirements and factory layout.

We can provide further technical information, discuss the machine’s 3800 mm cutting length, automatic rear lifting platform and installation requirements, and prepare a tailored quotation for your business.

Request an HP380CL Quote

Compare Other HUAHUA CNC Beam Saws

Compare the HP380CL with other HUAHUA CNC beam saws, including front-loading and rear-loading configurations with 3300 mm and 3800 mm cutting capacities.

Review the different panel-handling arrangements, machine footprints and production applications, or speak to PPM for help selecting the most suitable model for your factory.

HP380CL - Rear Loading Beam Saw

HP380CL CNC Beam Saw

View Cart
Details
HP380 Beamsaw

HP380 CNC Front Loading Beam Saw

View Cart
Details
HP330CL - Rear Loading CNC Beamsaw

HP330CL CNC Rear Loading Beam Saw

View Cart
Details
HP330 - Beamsaw

HP330 CNC Front Loading Beam Saw

View Cart
Details

Nationwide Supply of CNC Woodworking Machinery

Subscribe to Our Machinery Updates

Receive occasional updates about new woodworking machinery, installation projects, production advice and technical articles from Panel Production Machinery.

panel production machinery

eyre Industries Ltd

T/A Panel Production Machinery

Co: 09539054

VAT: 270222932

4 Bridgeman Terrace,
Wigan,
WN1 1SX
United Kingdom

UK Service Areas
say hello

P : 01332 891507
E : [email protected]

Privacy Policy

Cookie Policy

© 2012 - 2026• Panel Production Machinery are UKWoodworking CNC Machine Distributors • All Rights Reserved • Powered by Big Fish Social Media

panel production machinery
Phone : 01332 891507

Email : [email protected]

Go to Top
