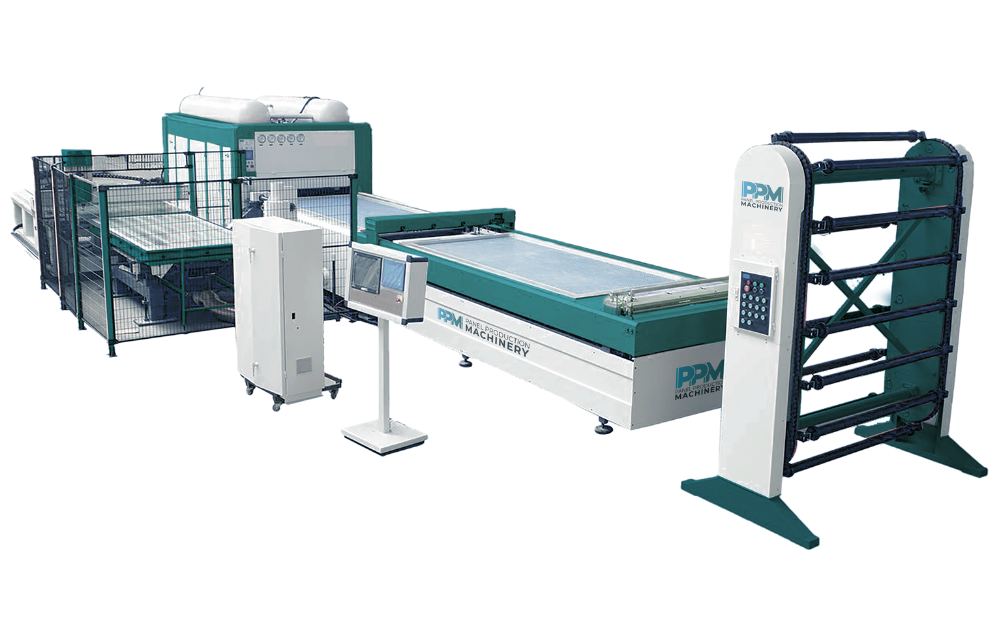

TM3200-P | Twin Table Vinyl Press Machine
Precision Forming for Complex PVC, Acrylic,
and 3D Furniture Components
The TM3200P is a fully automated vinyl membrane press built for high-output production of kitchen doors, wardrobe panels, curved cabinetry, and other 3D decorative surfaces. Designed to apply PVC, PET, and high-gloss foils over MDF panels, this press combines uniform heat distribution, powerful vacuum forming, and an advanced AutoPIN support system, eliminating the need for jigs and dramatically speeding up setup time.
Featuring a Becker 100 vacuum pump, heat-conducting oil circulation, and Omron PLC automation, the TM3200P delivers consistent, high-pressure forming with cycle times as fast as 2 minutes. Ideal for manufacturers working with irregular shapes, varied materials, and short lead-time production, it brings precision and flexibility to any membrane pressing operation.
Who Is the TM3200 -P Vinyl Press Designed For?
The TM3200P is engineered for manufacturers who need to combine speed, flexibility, and flawless surface finishing in high-demand production environments. Whether you’re forming vinyl-wrapped kitchen doors, bedroom cabinetry, speaker enclosures, or decorative wall panels, this machine provides unmatched performance and repeatability, even on irregular or custom-shaped parts.
Best suited for:
Its AutoPIN system, energy-efficient heating, and touchscreen PLC control make it ideal for companies producing high-value laminated components with varying dimensions and surface styles.
Key Features and Benefits

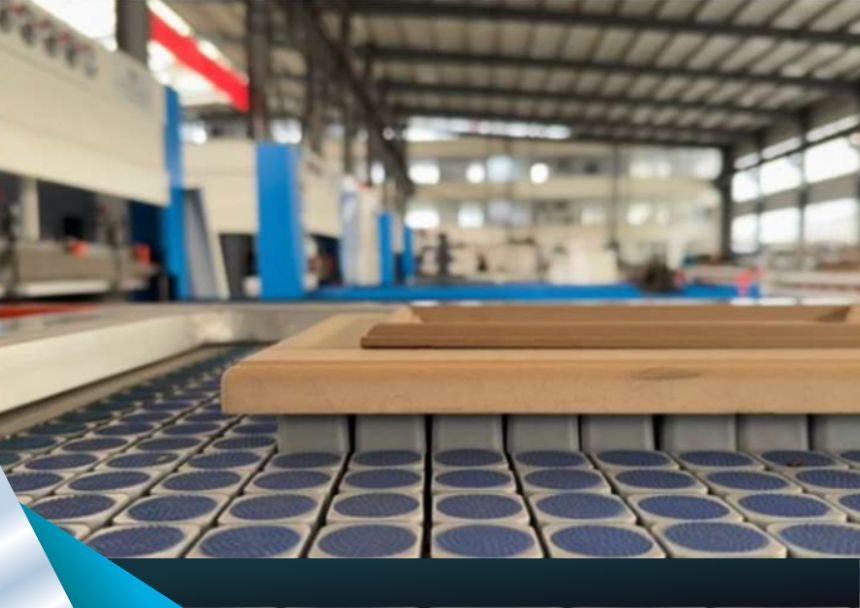

AutoPIN Support System
Jig-free production with intelligent pin activation
The TM3200C-P uses an advanced AutoPIN scanning system that detects panel shapes and automatically deploys support pins, eliminating the need for manual jigs and saving valuable time and storage space. The scanner allows for layout changes and final check adjustments before pressing begins.
Why It Matters:
Non-Welded, High-Strength Frame
Precision-formed steel for long-term durability
Constructed from solid manganese steel slabs, the TM3200C-P’s rigid frame resists twisting and warping even under pressures up to 500 tons. This modular, non-welded design ensures perfect plate alignment, making it ideal for repeatable forming cycles.
Why It Matters:
Becker 100 Vacuum Pump
Fast, powerful vacuum forming with a low failure rate
Equipped with a German-made Becker 100 series pump, the system provides strong suction and rapid pre-heating cycles for precise foil application. Its dual air channels and large-capacity air tank ensure quick recovery and excellent shape conformity.
Why It Matters:
Oil-Heated System with PID Temperature Control
The TM3200C-P uses an oil-circulating heating system with PID loop control to maintain stable, uniform temperature across the press. Independent top and bottom heating zones ensure accurate performance for both matte and high-gloss films.
Why It Matters:
Fully Automated Omron PLC Control
Smart interface for versatile operations
Featuring a user-friendly HMI and JP Omron PLC, the machine supports four working modes for different film and panel types. The control system is easy to operate even for complex jobs, and allows fast switching between panel formats.
Why It Matters:
Technical Specifications
What Sets the TM3200C-P Apart?
Unlike traditional membrane presses, the TM3200C-P is engineered for fully automated, jig-free production with smart layout recognition and heavy-duty build quality. Its AutoPIN tray system, Becker vacuum technology, and multi-mode operation allow you to process various film types and part shapes with less setup and more output.
What Makes It Stand Out:
This machine is ideal for companies manufacturing vinyl-wrapped cabinet doors, decorative furniture fronts, and complex 3D components. It is built to scale with your business.
What Can the TM3200C-P Do?
This press can handle a wide range of materials and part geometries, empowering you with smart temperature control, optional membrane use, and jig-free operation.
Suitable Film Types:
- PVC (matte or high-gloss)
- PET and decorative foils
- Acrylic and 3D vinyl
Supported Workpieces:
- Kitchen and bedroom cabinet doors
- MDF panels with routed or contoured profiles
- Furniture and speaker enclosures
- Wall panels and decorative interior components
Available Pressing Modes:
- Function 1 – Standard pressing for PVC (fastest cycle)
- Function 2 – For small parts with precise contouring
- Function 3 – Silicone pressing for heat-sensitive foils
- Function 4 – High-temperature air pressing for advanced materials
Ready to Upgrade Your Vinyl Pressing Workflow?
The TM3200C-P is your go-to solution for high-speed, jig-free pressing of PVC, PET, and high-gloss films. Its AutoPIN system, Becker vacuum technology, and oil-heated pressing system bring unbeatable efficiency and finish quality to your 3D panel production, instilling confidence in your investment.
👉 Contact us today for a brochure, quote, or demo.
Frequently Asked Questions
Yes, the machine is CE-certified and features E-stop buttons, door interlocks, and light barriers to ensure full compliance with European safety regulations.
The working table size is 3000 x 1310mm, with a maximum part height of 50mm, making it ideal for kitchen doors, decorative panels, and wardrobe fronts.
Under standard operation (12 pieces per cycle, 5-minute cycles, 8 hours per shift), the TM3200C-P can press up to 1,152 panels per 8-hour shift.
No. The machine uses an advanced AutoPIN system that detects the panel shape and automatically deploys pins to support the part, eliminating the need for physical jigs or templates.
Yes. The TM3200C-P supports matte and high-gloss PVC, PET, and other thermoformable decorative foils. It features four pressing modes to accommodate various materials and finishes.
