TM3200C-M2 Vinyl & Membrane Press Machine Overview
The TM3200C-M2 Vinyl & Membrane Press Machine is a conventional membrane press designed for applying PVC vinyl and suitable films to shaped MDF components used in kitchen, bedroom and furniture manufacturing.
The M2 forms part of the TM3200C range and uses the more compact rotating-table arrangement rather than the longer opposing-table layout associated with the M1 configuration. It uses a conventional jig and support system rather than AutoPIN technology.
With a working area of approximately 3000 × 1300 mm and typical pressing cycles of 2–4 minutes, the TM3200C-M2 is designed for manufacturers requiring repeatable membrane pressing while also considering production-floor space and material handling.

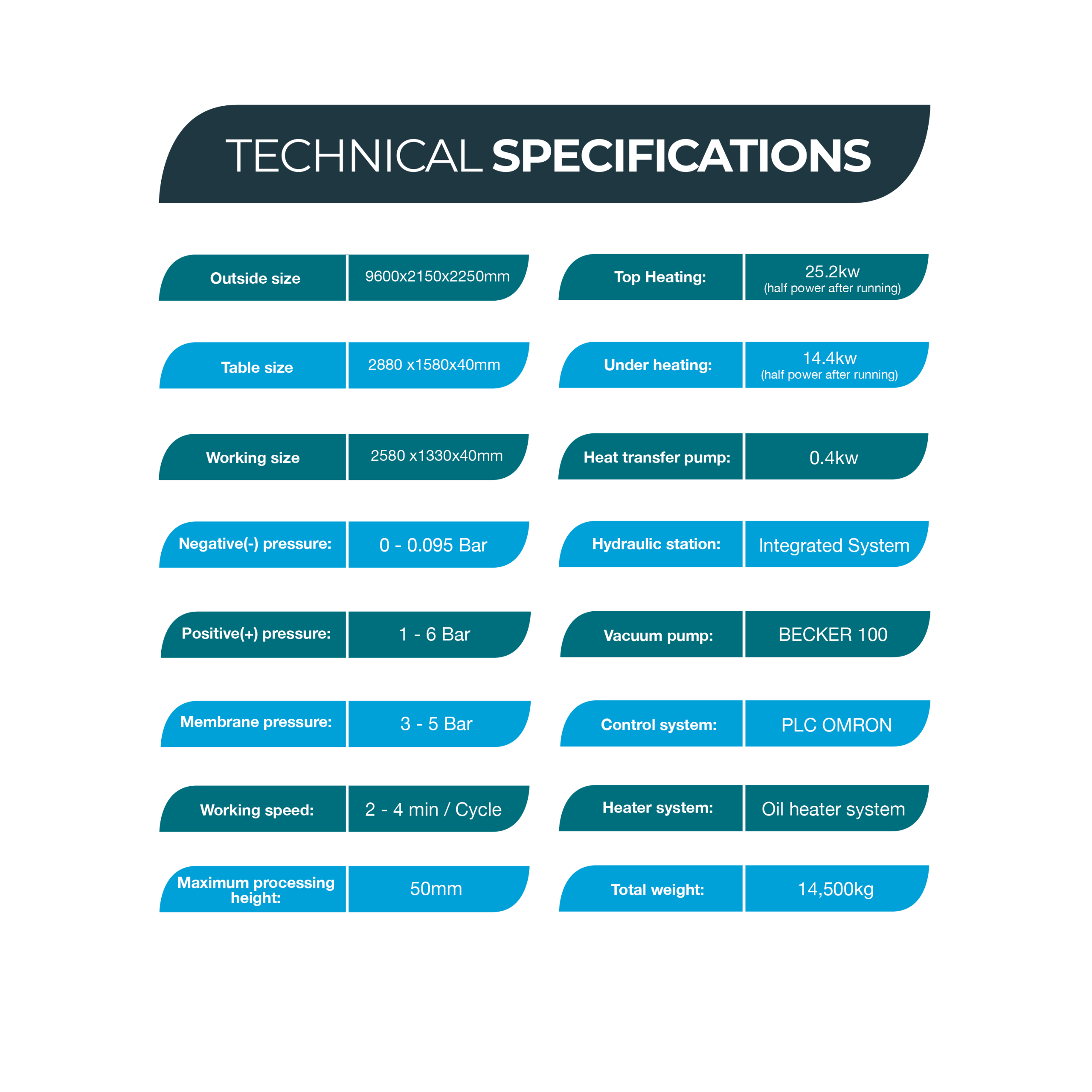

TM3200C-M2 Vinyl & Membrane Press Machine Specifications
Swipe sideways to view all specifications →
| Specification |
Detail |
| Manufacturer |
TZM Machinery |
| Model |
TM3200C-M2 |
| Machine type |
Vinyl and membrane press machine |
| Support system |
Conventional jig/support system |
| Working area |
3000 × 1300 × 40 mm |
| Table size |
3200 × 1320 × 40 mm |
| Maximum processing height |
50 mm |
| Typical working cycle |
2–4 minutes |
| Working voltage |
400V / 50Hz |
| Negative pressure |
0–0.095 MPa |
| Positive pressure |
0.5–0.6 MPa |
| Membrane pressure |
0.3–0.5 MPa |
| Total power |
52.6 kW |
| Top heating |
25.2 kW |
| Bottom heating |
14.4 kW |
| Vacuum pump |
Becker 100 |
| Control system |
Omron PLC |
| Heating system |
Thermal transfer oil heating system |
| Hydraulic system |
Integrated system |
| Published M2 twin-table dimensions |
Approx. 6800 × 2150 × 2250 mm |
Final dimensions and specification should be confirmed with PPM according to the table arrangement and configuration selected.
TM3200C-M2 Applications and Suitable Manufacturers
The TM3200C-M2 is designed for manufacturers carrying out membrane pressing and PVC vinyl wrapping of shaped MDF components. Typical applications include:
- Kitchen cabinet doors and fronts
- Bedroom and fitted-furniture components
- Wardrobe doors and panels
- Cabinet and furniture fronts
- Decorative doors and panels
- Wall panels and interior components
- Profiled and shaped MDF products
The machine can process PVC vinyl and other suitable films using a silicone or rubber membrane. Suitable pre-glued foils can also be processed with the appropriate non-stick table configuration.
M2 Membrane Press Configuration and Key Features
The defining feature of the TM3200C-M2 is its more compact table arrangement. Compared with the M1 configuration, where working tables are positioned on opposing sides of the press, the M2 uses a rotating arrangement intended to reduce the overall floor space required.
PPM can supply single-table and twin-table membrane press configurations according to the customer’s production requirements, available factory space and preferred workflow.
Key features include:
- Conventional jig/support system: components are supported using conventional jigs rather than the AutoPIN system used on the TM3200C-P.
- Compact M2 layout: designed to reduce the machine footprint compared with the longer opposing-table M1 arrangement.

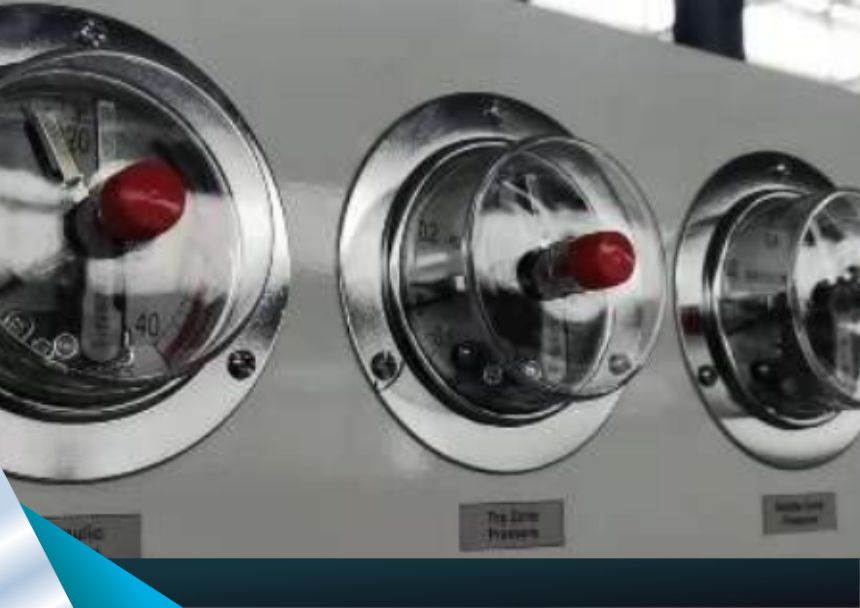

- Oil-heated pressing system: heat-transfer oil is used to provide controlled and consistent heating during processing.
- Top and bottom heating: provides controlled heat across the pressing process.
- Becker vacuum pump: provides the vacuum required during membrane-forming operations.

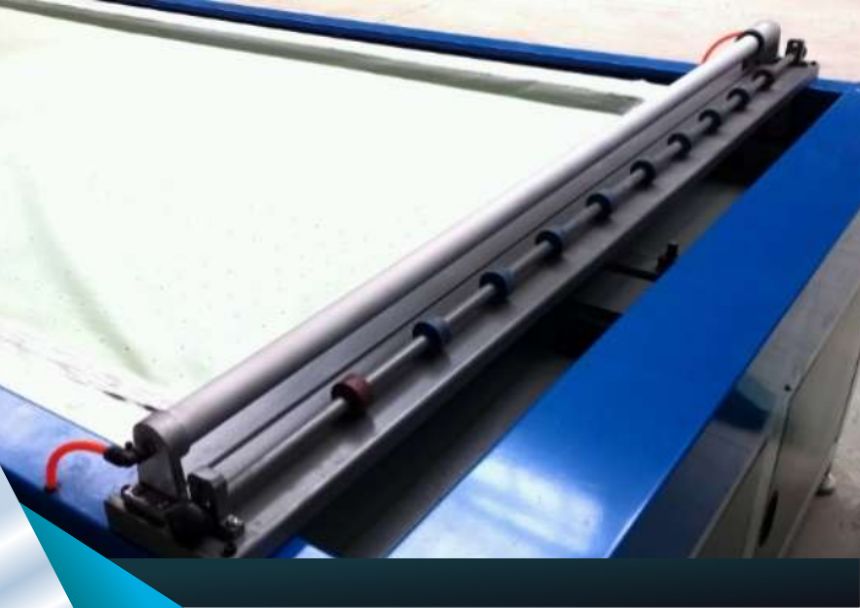

- Omron PLC and HMI control: provides operator control of the automated pressing process.
- Multiple working modes: four operating modes are available for different film, finish and processing requirements.

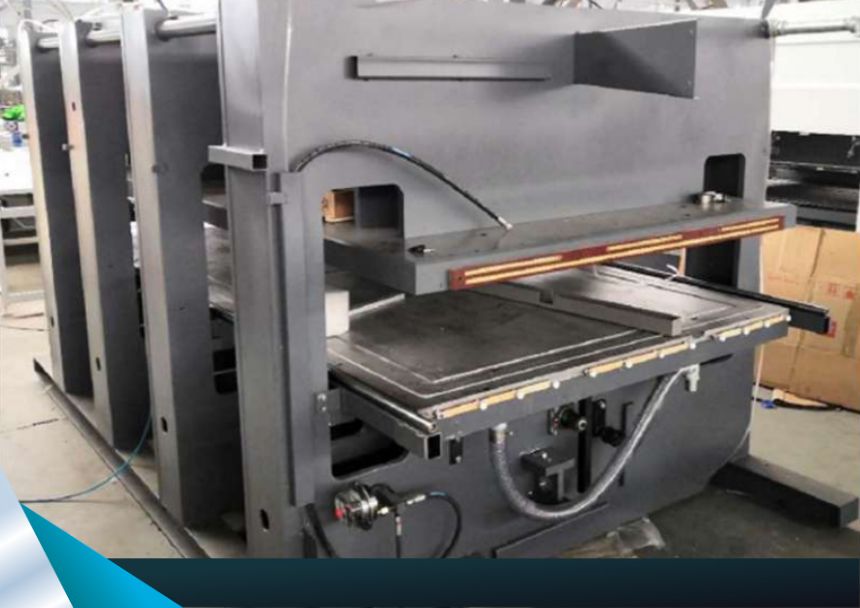

- Heavy-duty construction: the machine frame and CNC-machined components are designed for strength, accuracy and repeatable production.
Where a twin-table configuration is selected, one working table can be prepared while the other is being processed, helping manufacturers organise loading and production more efficiently.
PPM can advise whether a single-table membrane press or twin-table membrane press configuration is more appropriate based on component sizes, expected throughput, available floor space and the required production workflow.
Installation, Training and UK Support
Panel Production Machinery can support the TM3200C-M2 project from initial machine selection through to delivery, installation and operator handover.
Machine specification: Guidance on component sizes, film requirements, table configuration and suitable machine specification.
Factory planning: Review of machine footprint, access, electrical supply, compressed-air requirements and material movement around the production area.
Delivery and installation: Coordination of unloading, positioning and machine installation.
Operator training: Practical guidance on controls, machine setup, jig preparation, routine operation and daily checks.
Technical support: Ongoing assistance with operation, maintenance and replacement-parts requirements.
Enquire About the TM3200C-M2 Vinyl & Membrane Press Machine
Speak to the PPM team about your component sizes, PVC vinyl or membrane requirements, production volumes, available factory space and preferred table configuration.
We can help assess whether the TM3200C-M2 is suitable for your production requirements, whether a single- or twin-table configuration is most appropriate, and provide further technical information or a tailored quotation.
Call 01332 891507 or contact the PPM machinery team.
